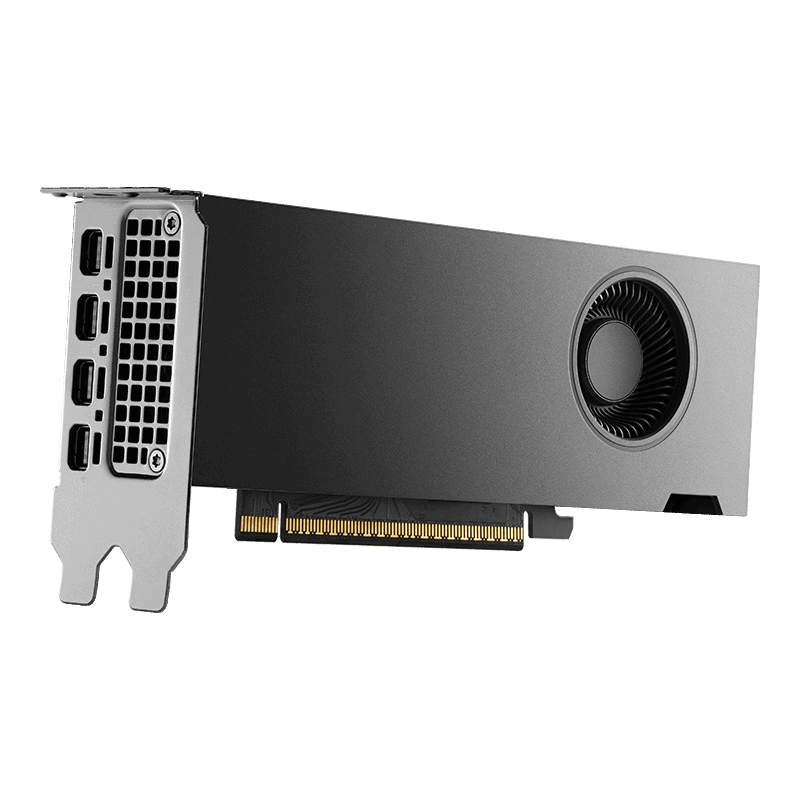

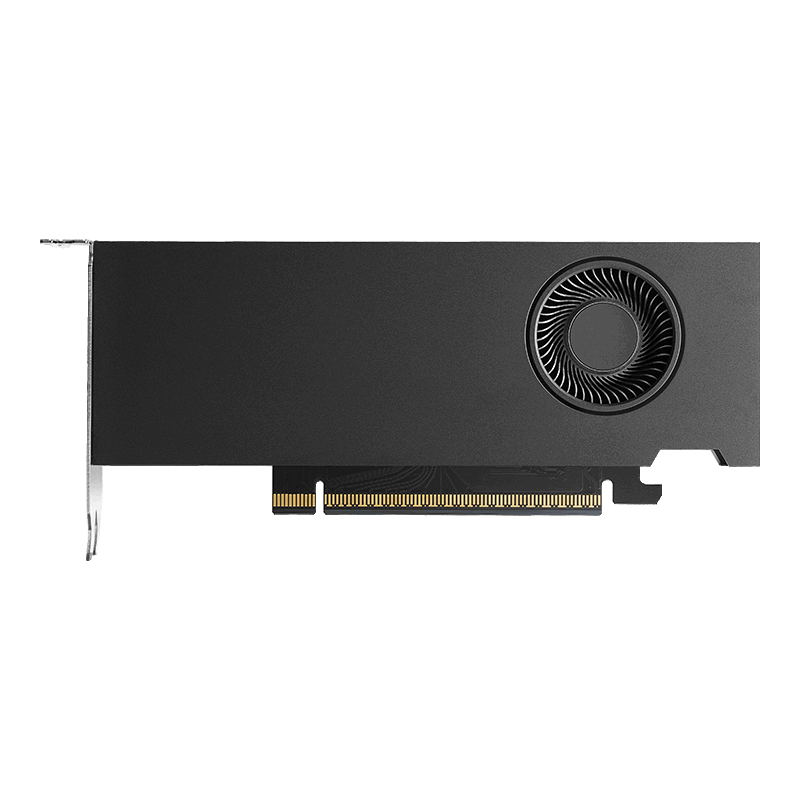

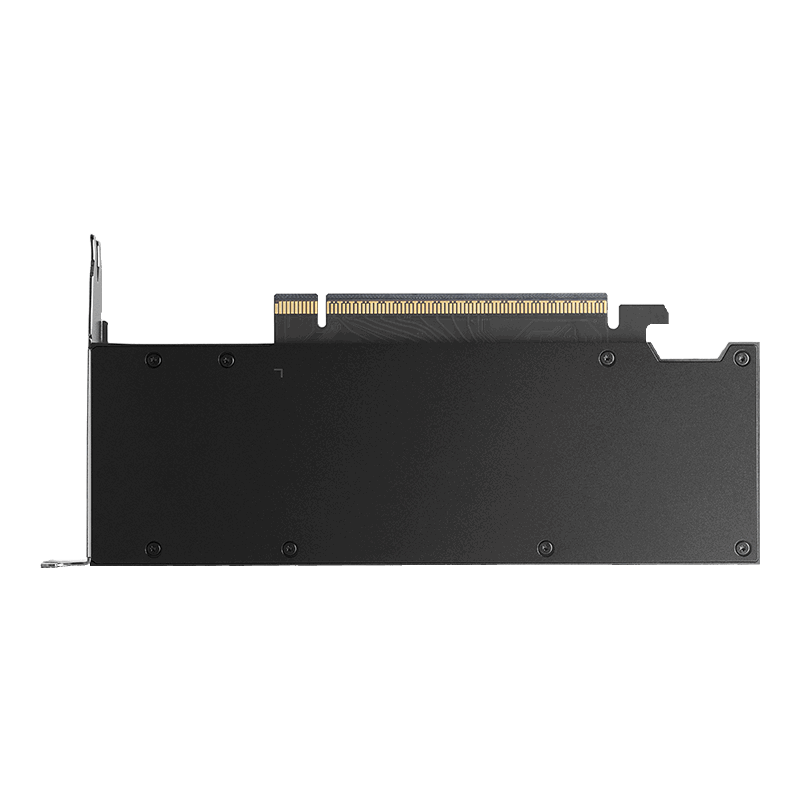

PNY NVIDIA RTX PRO 4000 SFF Blackwell

Notify Me

The NVIDIA RTX PRO™ 4000 Blackwell SFF Edition combines next-gen RT Cores, Tensor Cores, and CUDA® cores with 24GB of GDDR7 memory for the ultimate performance in a compact design.

Features
  • NVIDIA Blackwell Architecture
  • 24 GB GDDR7 with ECC
  • 280 Gen 5 Tensor Cores
  • 70 Gen 4 RT Cores
  • 8,960 CUDA® Cores
  • 70 W Max Power Consumption
Specifications
Product NVIDIA RTX PRO 4000 Blackwell SFF Edition
PNY Part Numbers VCNRTXPRO4000BLP-PB
Architecture NVIDIA Blackwell Architecture
Foundry TSMC
Process Size 4N NVIDIA Custom Process
Die Size 378 mm2
Transistors 45.6 billion
CUDA Parallel Processing cores 8960
Single-Precision Performance 24 TFLOPS
Tensor Performance 770 AI TOPS
RT Core Performance 73 TFLOPS
GPU Memory 24 GB GDDR7 with ECC
Memory Interface 192-bit
Memory Bandwidth 432 GB/s
Maximum Power Consumption 70W
Graphics Bus PCI Express 5.0 x8

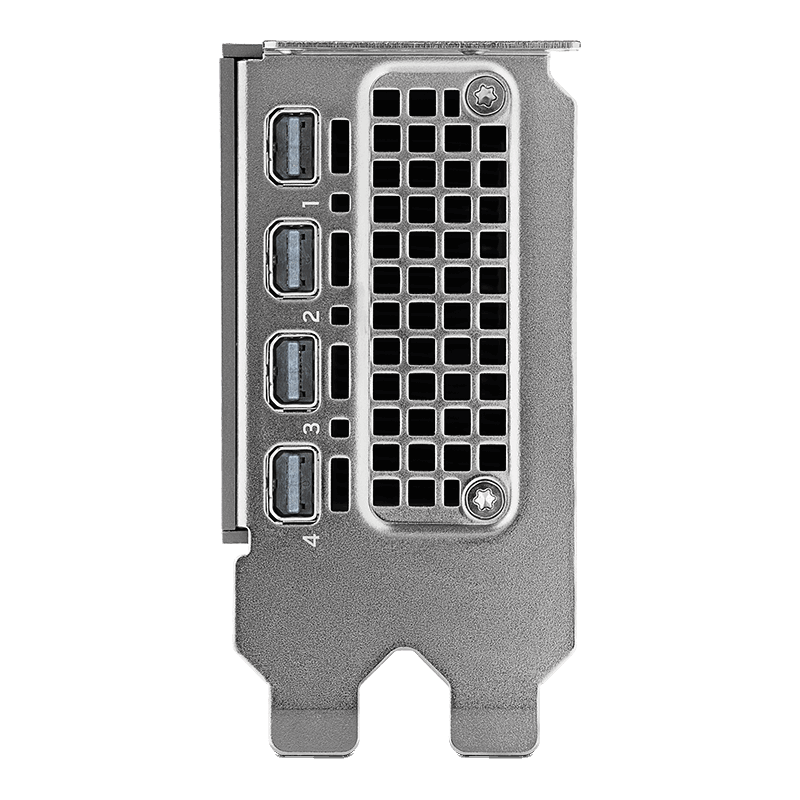

Display Connectors mDP 2.1b (4)
Form Factor 2.7” H x 6.6” L, HHHL Dual Slot
Product weight with ATX Bracket 0.339 kg
Product weight with Low Profile Bracket 0.327 kg
Thermal Solution Blower Active Fan
NVIDIA 3D Vision and 3D Vision Pro Support via 3-pin mini DIN
Frame lock Compatible (with RTX PRO Sync)
Power Connector N/A
NVENC | NVDEC | JPEG 2x | 2x | 1x
Performance numbers may be subject to change until product availability.
Peak rates are based on GPU boost clock.
Theoretical FP4 TOPS using the sparsity feature.
Uses full length PCIe interface.
System Requirements
System Requirements
  • Intel Core i5, i7, i9, or Xeon processor or later
Supported Platforms
  • Microsoft Windows 11 (64-bit)
Package Contains


  • NVIDIA RTX PRO 4000 SFF Blackwell professional graphics card
  • ATX (full-height) bracket attached and LP (low-profile) bracket in the box
  • x4 mDP to DP NVIDIA Certified Latching Adapters

NVIDIA RTX PRO 4000 Blackwell SFF Edition

Experience the power of the NVIDIA Blackwell architecture with the NVIDIA RTX PRO™ 4000 Blackwell SFF Edition. Featuring next-generation Tensor and RT Cores, plus a new generation of CUDA cores and GDDR7 memory, it delivers exceptional performance for rendering, AI, and graphics in a compact form factor.

NVIDIA RTX PRO

Designed for professionals who demand the best, NVIDIA RTX PRO solutions deliver unparalleled performance, reliability, and support. Every GPU is rigorously tested for a wide range of design, engineering, and AI workflows and continually optimized through enterprise drivers. With extensive ISV certifications, robust IT management tools, and enterprise-grade support, RTX PRO workstations are the trusted choice for enterprise deployments and mission-critical work.

NVIDIA Blackwell

The NVIDIA Blackwell architecture is the engine of AI that combines breakthrough AI, ray tracing and neural rendering technology to create a new standard of visual fidelity and performance. With massive performance and memory improvements to drive cutting-edge professional creative, design, and engineering workflows from anywhere.

Blackwell Streaming Multiprocessor (SM)

Blackwell is the most powerful professional RTX GPU ever created with the latest SM and CUDA core technology. The new SM features increased processing throughput, and new neural shaders that integrate neural networks inside of programmable shaders to drive the next decade of AI-augmented graphics innovations.

Fifth-Generation Tensor Cores

5th Generation Tensor Cores deliver up to 3X the performance of the previous generation and add support for FP4 precision and DLSS 4 multi-frame generation technology. Accelerate local LLMs, prototype new AI models, and drive enhanced content creation and graphics.

Fourth-Generation RT Core

Fourth-gen RT Cores deliver up to 2X the performance of the previous generation, accelerating rendering for M&E content creation, AECO design, and manufacturing prototyping. Create photoreal, physically accurate scenes and immersive 3D designs with AI-driven neural rendering-based technologies, such as RTX Mega Geometry, enabling up to 100X more ray-traced triangles.

Ninth-Generation NVENC Engines

Ninth-gen NVIDIA NVENC engines, significantly accelerate video encoding speed, and improve quality for professional video applications. They add new support for 4:2:2 H.264 and HEVC encoding, and improve HEVC and AV1 encoding quality.

Sixth-Generation NVDEC Engines

Sixth-gen NVIDIA NVDEC engines provide up to double the H.264 decoding throughput and offer support for 4:2:2 H.264 and HEVC decode. Professionals can benefit from high-quality video playback, accelerated video data ingestion, and use advanced AI-powered video editing features.

GDDR7 Memory

New and improved GDDR7 memory significantly boosts bandwidth and capacity, empowering your applications to run faster, and work with larger, more complex datasets. With up to 96 GB of GPU memory, tackle massive 3D and AI projects, explore large-scale VR environments, and drive larger multi-app workflows.

PCIe Gen 5

Support for PCI Express Gen 5 provides double the bandwidth of PCIe Gen 4, improving data-transfer speeds from CPU memory and unlocking faster performance for data-intensive tasks like AI, XR, data science and 3D modeling.

Form Factor Flexibility

NVIDIA RTX PRO GPUs are available in various form factors to suit different professional applications. Low-profile GPUs for space-constrained setups, professionals can choose the optimal form factor to balance performance and efficiency.

Display Features

DisplayPort 2.1b

With DisplayPort 2.1b, professionals can achieve unparalleled visual clarity and performance, driving high-resolution displays at up to 8K at 240Hz and 16K at 60Hz. Increased bandwidth enables seamless multi-monitor setups, ideal for multitasking and collaboration, while HDR and higher color depth support ensures superior color accuracy for precision.
