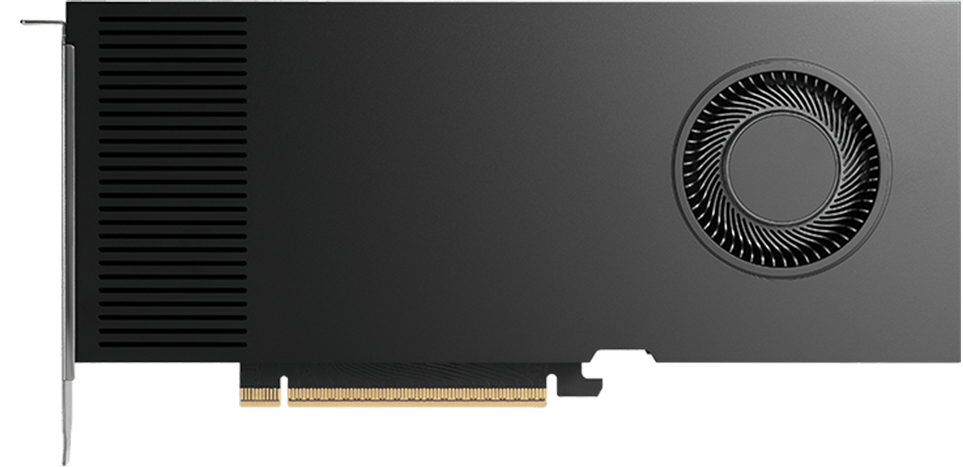

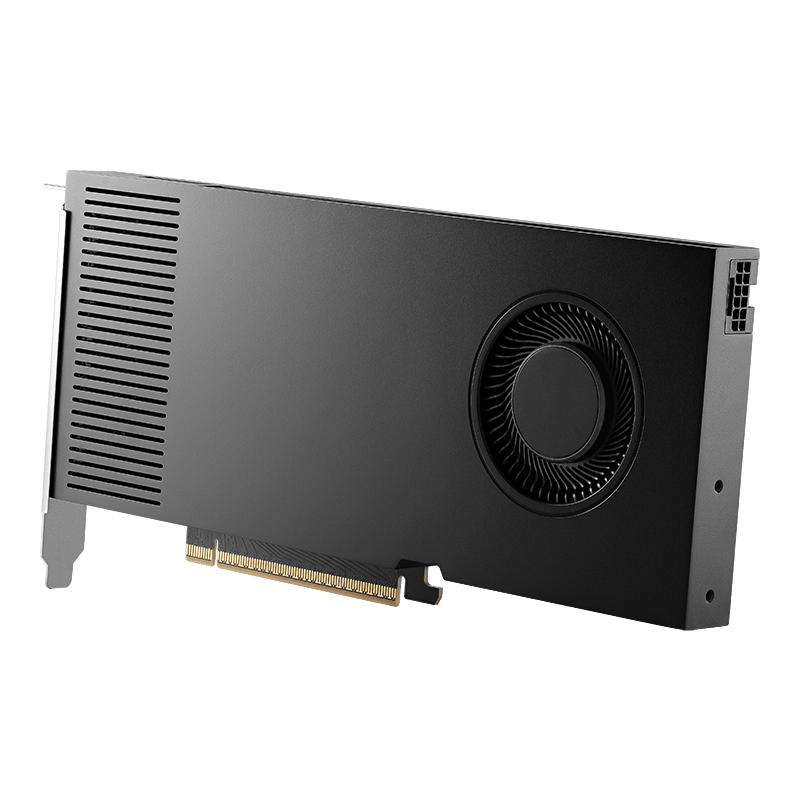

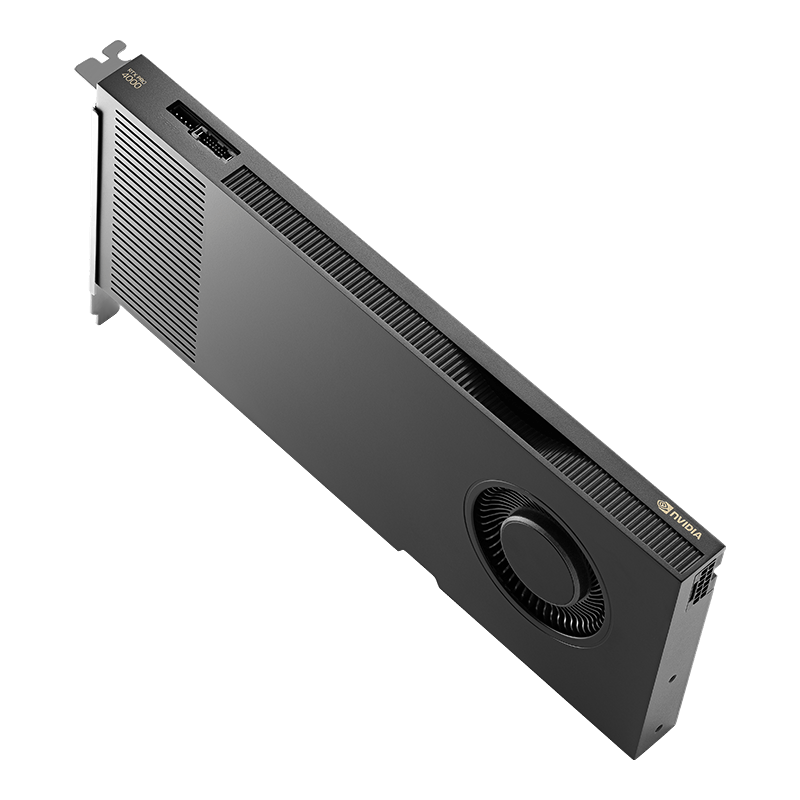

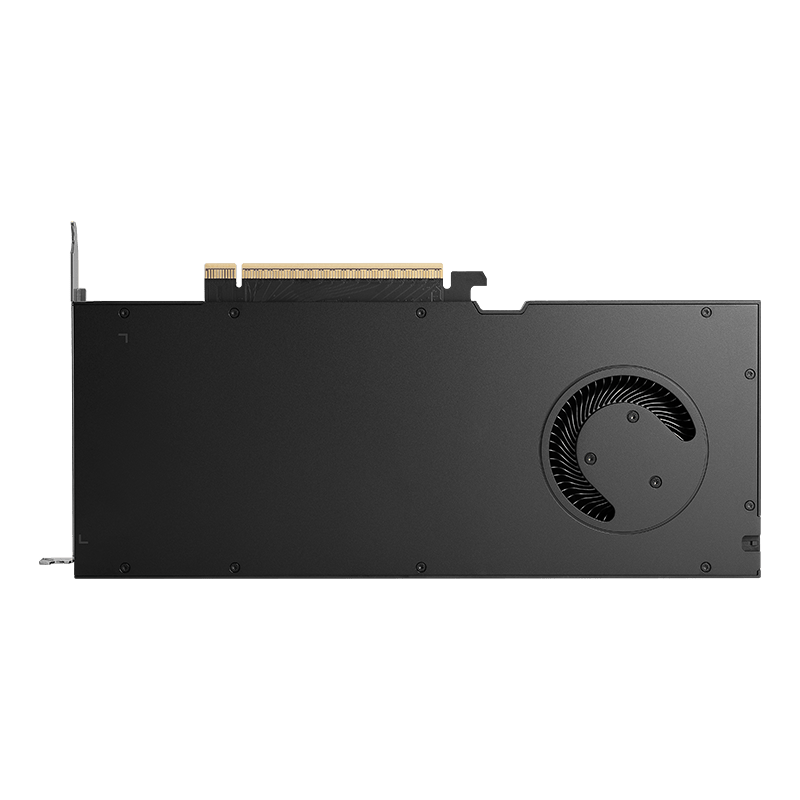

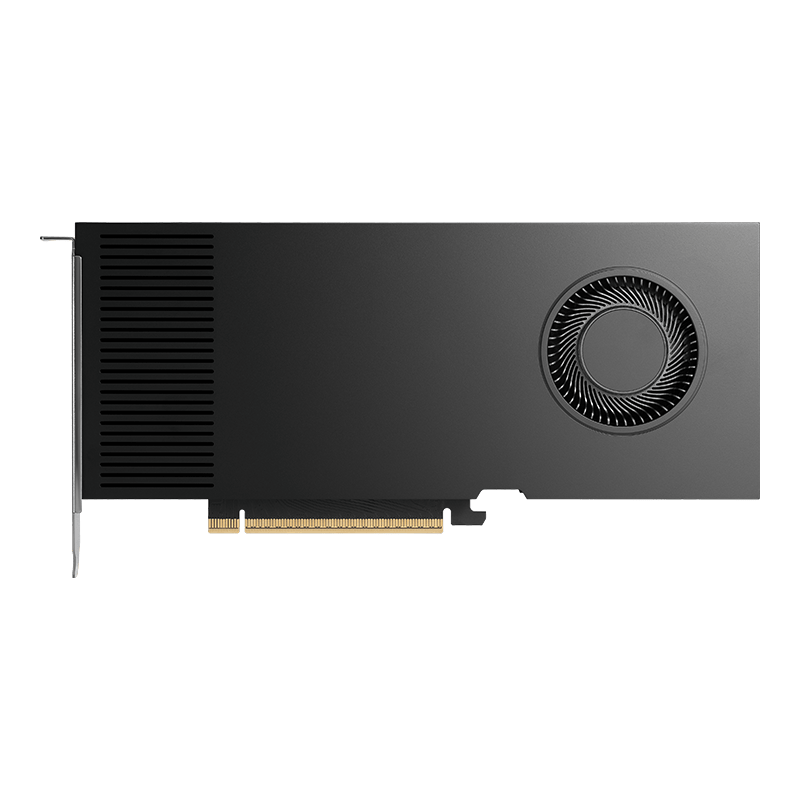

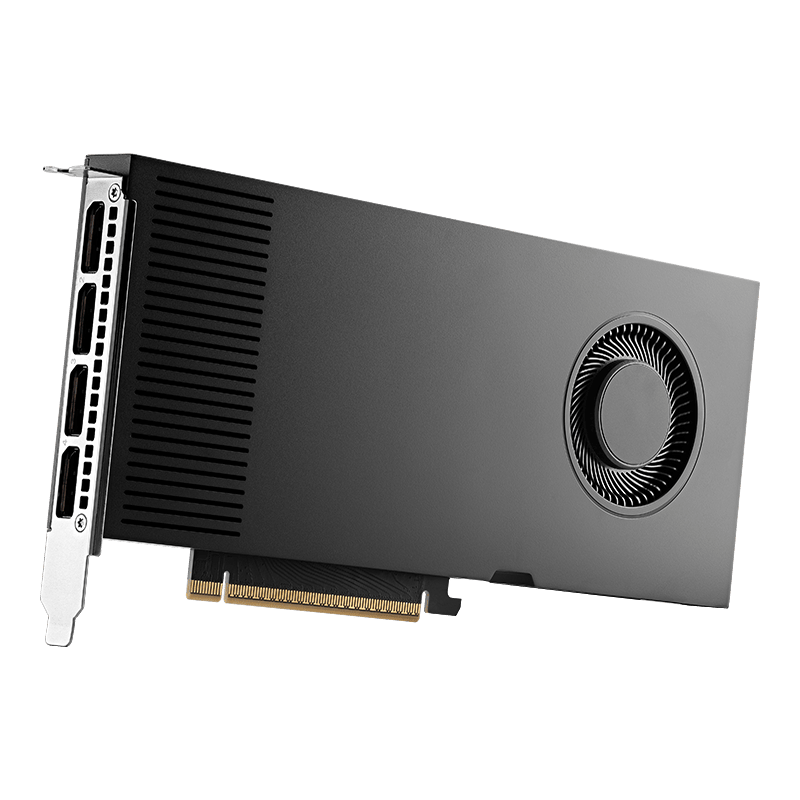

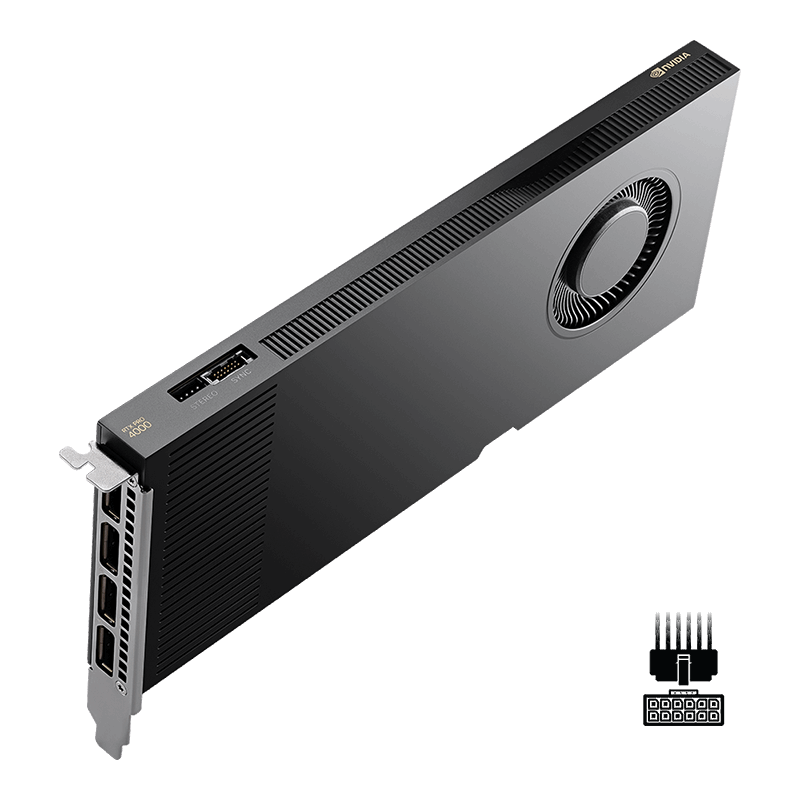

PNY NVIDIA RTX PRO 4000 Blackwell

Notify Me

Experience the power of the most advanced single-slot GPU for professionals. Powered by NVIDIA Blackwell architecture, the NVIDIA RTX PRO 4000 delivers breakthrough AI performance, neural rendering, and unmatched efficiency.

Features
  • NVIDIA Blackwell Architecture
  • 24 GB GDDR7 with ECC
  • NVIDIA RTX PRO SYNC Compatible
  • 4 x Display Port 2.1
  • 8960 CUDA® Cores
  • 140 W Max Power Consumption
Specifications
PNY Part Numbers VCNRTXPRO4000B-PB, VCNRTXPRO4000B-BLK
Architecture NVIDIA Blackwell Architecture
Foundry TSMC
Process Size 4N NVIDIA Custom Process
Transistors 45.6 Billion
Die Size 378 mm2
CUDA Parallel Processing Cores 8960
NVIDIA Tensor Cores 280
NVIDIA RT Cores 70
GPU Memory 24 GB GDDR7 with ECC
Memory Interface 192-bit
Max Power Consumption 140W
NVIDIA RTX Power Guidelines (PDF)
Graphics Bus PCI Express 5.0 x16

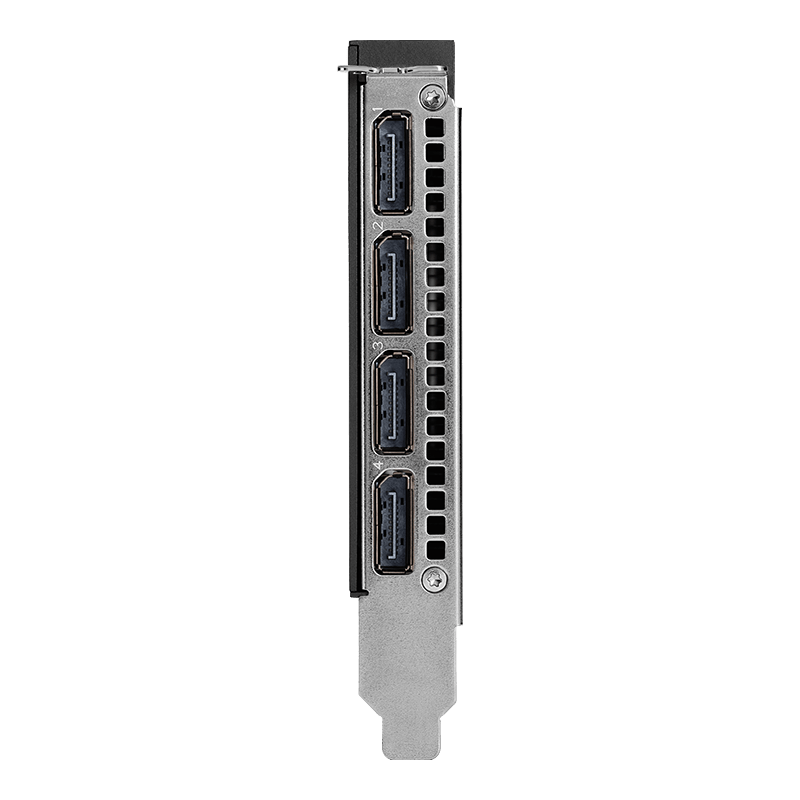

Display Connectors DP 2.1 (4)
NVIDIA RTX Display Resolution Support (PDF)
Form Factor 4.4” H x 9.5” L, FHML Single Slot
Product Weight 0.554 kg
Thermal Solution Blower Active Fan
NVIDIA® 3D Vision® and 3D Vision Pro Support Via 3-pin Mini DIN
Frame Lock Compatible (with NVIDIA RTX PRO Sync)
Power Connector 1x PCIe CEM5 16-pin
NVENC | NVDEC | JPEG 2x | 2x | 1x
Performance numbers may be subject to change until product availability.
Peak rates are based on GPU boost clock.
Theoretical FP4 TOPS using the sparsity feature.
System Requirements
System Requirements
  • Intel Core i5, i7, i9, or Xeon processor or later
Supported Platforms
  • Microsoft Windows 11 (64-bit)
Package Contains


  • NVIDIA RTX Pro™ 4000 Blackwell Professional Graphics Card
  • One (1) Auxiliary Power Cable

NVIDIA RTX 4000 Blackwell Generation NVIDIA RTX PRO - Built for Professionals

The NVIDIA RTX PRO™ 4000 Blackwell redefines what’s possible with a single-slot GPU, fusing the latest RT Cores, Tensor Cores, CUDA® cores, and 24GB of graphics memory to deliver monumental power and performance within a small footprint.

Seamless Synchronization for Multi-Display Systems

NVIDIA RTX PRO™ Sync and compatible NVIDIA Professional GPUs support Windows 10, 11, and Linux, providing a robust system that lets you:

  • Drive large-scale synchronized multi-display solutions using enterprise-grade platforms at any scale - from digital signage to building-scale experiences
  • Synchronize hundreds of displays to build larger-than-life solutions – from videos to interactive 3D graphics and everything in between
  • Deploy in cutting-edge mission-critical installations globally
Explore More

NVIDIA RTX PRO

Designed for professionals who demand the best, NVIDIA RTX PRO solutions deliver unparalleled performance, reliability, and support. Every GPU is rigorously tested for a wide range of design, engineering, and AI workflows and continually optimized through enterprise drivers. With extensive ISV certifications, robust IT management tools, and enterprise-grade support, RTX PRO workstations are the trusted choice for enterprise deployments and mission-critical work.

NVIDIA Blackwell Architecture

The NVIDIA Blackwell architecture is the engine of AI that combines breakthrough AI, ray tracing and neural graphics technology to create a new standard of visual fidelity and performance. With massive performance and memory improvements to drive cutting-edge professional creative, design, and engineering workflows from anywhere.

Blackwell Streaming Multiprocessor (SM)

Blackwell is the most powerful professional RTX GPU ever created with the latest SM and CUDA core technology. The new SM features increased processing throughput, and new neural shaders that integrate neural networks inside of programmable shaders to drive the next decade of AI-augmented graphics innovations.

Fifth-Generation Tensor Cores

5th Generation Tensor Cores deliver up to 3X the performance of the previous generation and add support for FP4 precision and DLSS 4 multi-frame generation technology. Accelerate local LLMs, prototype new AI models, and drive enhanced content creation and graphics.

Fourth-Generation RT Cores

Fourth-gen RT Cores deliver up to 2X the performance of the previous generation, accelerating rendering for M&E content creation, AECO design, and manufacturing prototyping. Create photoreal, physically accurate scenes and immersive 3D designs with neural graphics-based technologies, such as RTX Mega Geometry, enabling up to 100X more ray-traced triangles.

Ninth-Generation NVENC Engines

Ninth-gen NVIDIA NVENC engines significantly accelerate video encoding speed, and improve quality for professional video applications. They add new support for 4:2:2 H.264 and HEVC encoding, and improve HEVC and AV1 encoding quality.

Sixth-Generation NVDEC Engines

Sixth-gen NVIDIA NVDEC engines provide up to double the H.264 decoding throughput and offer support for 4:2:2 H.264 and HEVC decode. Professionals can benefit from high-quality video playback, accelerated video data ingestion, and use advanced AI-powered video editing features.

GDDR7 Memory

New and improved GDDR7 memory significantly boosts bandwidth and capacity, empowering your applications to run faster, and work with larger, more complex datasets. With up to 96 GB of GPU memory, tackle massive 3D and AI projects, explore large-scale VR environments, and drive larger multi-app workflows.

Display Features

NVIDIA Mosaic Technology

Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.

DisplayPort 1.4a

Support up to four 5K monitors @ 60Hz, or dual 8K displays @ 60Hz per card. The RTX 6000 Ada supports HDR color for 4K @ 60Hz for 10/12b HEVC decode and up to 4K @ 60Hz for 10b HEVC encode. Each DisplayPort connector can drive ultra-high resolutions of 4096x2160 @ 120 Hz with 30-bit color.

NVIDIA RTX Desktop Manager

Gain unprecedented end-user control of the desktop experience for increased productivity in a single large display or multi-display environments, especially in the current age of large, widescreen displays.

NVIDIA RTX PRO Sync

Synchronize the display and image output of up to 32 displays3 from 8 GPUs (connected through two RTX Pro Sync boards) in a single system, reducing the number of machines needed to create an advanced video visualization environment.

Frame Lock Connector Latch

Each frame lock connector is designed with a self-locking retention mechanism to secure its connection with the frame lock cable to provide robust connectivity and maximum productivity.

OpenGL Quad Buffered Stereo Support

Provide a smooth and immersive 3D Stereo experience for professional applications.

Ultra-High-Resolution Desktop Support

Get more Mosaic topology choices with high-resolution display devices with a 32K max desktop size.

Professional 3D Stereo Synchronization

Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to an NVIDIA RTX professional graphics card.
