PNY NVIDIA RTX 6000 Ada Generation

Notify Me

The NVIDIA RTX™ 6000 Ada Generation tackles today's professional workflows with cutting-edge AI and graphics performance. Built on the NVIDIA Ada Lovelace architecture, it features 142 RT Cores, 568 Tensor Cores, 18176 CUDA® cores, and 48GB of memory. With unparalleled speed in rendering, AI, and compute tasks, RTX 6000 Ada-powered workstations equip you to excel in today’s demanding business environment.

Features
  • NVIDIA Ada Lovelace Architecture
  • 48 GB GDDR6 with ECC
  • 568 Gen 4 Tensor Cores
  • 142 Gen 3 RT Cores
  • 18,176 CUDA® Cores
  • 300 W Max Power Consumption
Specifications
Product NVIDIA RTX™ 6000 Ada Generation
PNY Part Number VCNRTX6000ADA-PB
Foundry TSMC
Process Size 4 nm NVIDIA Custom Process
Transistors 76.3 Billion
Die Size 608.4 mm2
CUDA® Parallel Processing Cores 18,176
RT Cores 142 | Gen 3
NVIDIA Tensor Cores 568
NVIDIA RT Cores 142
Single-Precision Performance 91.1 TFLOPS
RT Core Performance 210.6 TFLOPS
Tensor Performance 1457.0 TFLOPS
GPU Memory 48 GB GDDR6 with ECC
Memory Interface 384-bit
Memory Bandwidth 960 GB/s
Max Power Consumption 300W
NVIDIA RTX Power Guidelines (PDF)
Graphics Bus PCI Express 4.0 x16

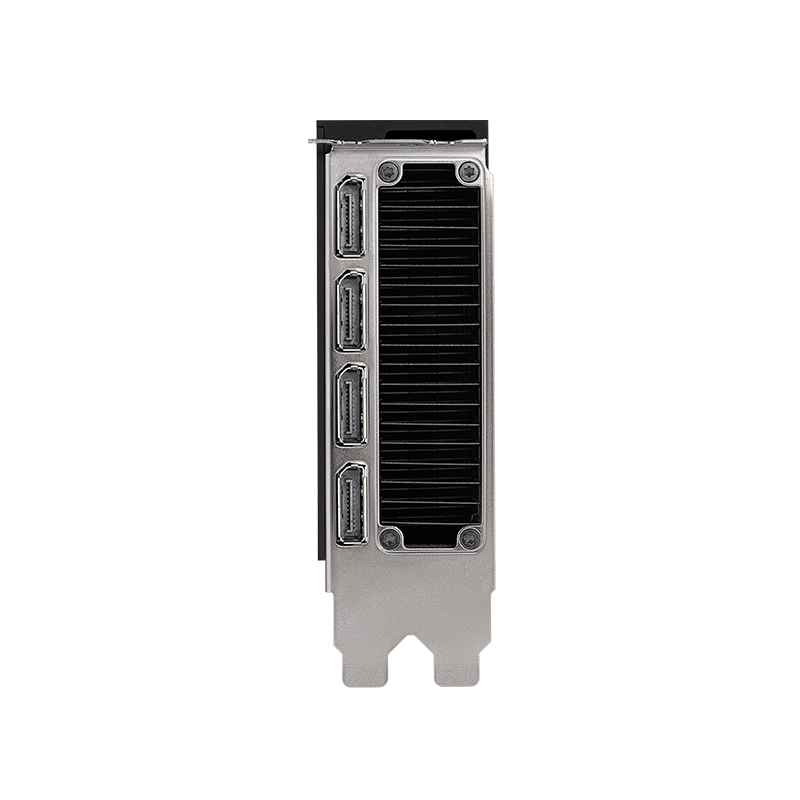

Display Connectors DP 1.4a (4)
NVIDIA RTX Display Resolution Support (PDF)
Form Factor 4.4" H x 10.5" L, Dual Slot
Product Weight 1.180 kg
Thermal Solution Blower Active Fan
vGPU Software Support NVIDIA vPC/vApps, NVIDIA RTX Virtual Workstation (vWS)
vGPU Profiles Supported 1 GB, 2 GB, 3 GB, 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 24 GB, 48 GB
NVIDIA® 3D Vision® and 3D Vision Pro Support Via 3-pin Mini DIN
Frame Lock Compatible (with Quadro Sync II)
NVLink Not Supported
NVLink Interconnect Not Supported
Power Connector 1x PCIe CEM5 16-pin
NVENC | NVDEC 3x | 3x (+AV1 Encode & Decode)
Performance numbers may be subject to change until product availability. Peak rates are based on GPU boost clock.
Effective FP8 TFLOPS using the new sparsity feature.
Display ports are on by default for the RTX 6000 Ada Generation. Display ports are not active when using vGPU software.
Virtualization support for the RTX 6000 Ada Generation will be available in an upcoming NVIDIA virtual GPU (vGPU) release, anticipated in Q1, 2023.
System Requirements
System Requirements
  • Intel Core i5, i7, i9, or Xeon processor or later
Supported Platforms
  • Microsoft Windows 11 (64-bit)
Package Contains


  • NVIDIA RTX 6000 Ada Generation Professional Graphics Card
  • One (1) Auxiliary Power Cable

NVIDIA RTX 6000 Ada Generation Performance For Endless Possibilities

Work is evolving with distributed teams and remote workers becoming the norm. Artists face growing demand for differentiated visually compelling content. Designers and engineers strive for more complex, efficient designs in supply-constrained environments. Scientists, researchers, and medical professionals face immense challenges, requiring rapid development of global solutions.

NVIDIA Ada Lovelace Architecture-Based CUDA Cores

2X the speed of the previous generation for single-precision floating-point (FP32) operations provides significant performance improvements for graphics and simulation workflows on the desktop, such as complex 3D computer-aided design (CAD) and computer-aided engineering (CAE).

Third-Generation RT Cores

With up to 2X the throughput over the previous generation, third-generation RT Cores deliver massive speedups for workloads like photorealistic rendering of movie content, architectural design evaluations, and virtual prototyping of product designs. This technology also accelerates the rendering of ray-traced motion blur with greater visual accuracy.

Fourth-Generation Tensor Cores

Fourth-generation Tensor Cores, using the FP8 data format, deliver more than 2X the AI performance of the previous generation, enabling rapid model training and inferencing directly on RTX-powered AI workstations.

48GB of GPU Memory

With 48GB GDDR6 memory, RTX 6000 gives data scientists, engineers, and creative professionals the large memory needed to work with large datasets and workloads like rendering, data science, and simulation.

AV1 Encoders

Eighth-generation dedicated hardware encoder (NVENC) with AV1 encoding unlocks new opportunities for streamers, broadcasters, and video conferencing. It’s 40% more efficient than H.264, allowing users streaming at 1080p to increase their resolution to 1440p while running at the same bit rate and quality.

Virtualization-Ready

Support for NVIDIA RTX Virtual Workstation (vWS) software allows a personal workstation to be repurposed into multiple high-performance virtual workstation instances, letting remote users share resources to drive high-end design, AI, and compute workloads.

Display Features

NVIDIA Mosaic Technology

Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.

DisplayPort 1.4a

Support up to four 5K monitors @ 60Hz, or dual 8K displays @ 60Hz per card. The RTX 6000 Ada supports HDR color for 4K @ 60Hz for 10/12b HEVC decode and up to 4K @ 60Hz for 10b HEVC encode. Each DisplayPort connector can drive ultra-high resolutions of 4096x2160 @ 120 Hz with 30-bit color.

NVIDIA RTX Desktop Manager

Gain unprecedented end-user control of the desktop experience for increased productivity in a single large display or multi-display environments, especially in the current age of large, widescreen displays.

NVIDIA Quadro Sync II

Synchronize the display and image output of up to 32 displays3 from 8 GPUs (connected through two Sync II boards) in a single system, reducing the number of machines needed to create an advanced video visualization environment.

Frame Lock Connector Latch

Each frame lock connector is designed with a self-locking retention mechanism to secure its connection with the frame lock cable to provide robust connectivity and maximum productivity.

OpenGL Quad Buffered Stereo Support

Provide a smooth and immersive 3D Stereo experience for professional applications.

Ultra-High-Resolution Desktop Support

Get more Mosaic topology choices with high-resolution display devices with a 32K max desktop size.

Professional 3D Stereo Synchronization

Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to an NVIDIA RTX professional graphics card.

Support & Resources

Warranty

3-Year Limited Warranty

Support

Technical Support

Receive free dedicated phone & email technical support and assistance from dedicated NVIDIA professional products field application engineers.
