Generative AI has revolutionized creative and technical workflows, ushering in a new era of computing. Its impact spans industries, from language processing to digital biology, manufacturing, and robotics. NVIDIA RTX™ leverages AI and ray tracing to deliver unprecedented levels of realism in graphics, while DLSS 3 introduces breakthroughs in AI-powered graphics. Additionally, NVIDIA Omniverse™ Enterprise bridges the gap between physical and digital worlds, enabling software-defined industries and fostering collaboration among large, highly skilled teams.
As professionals navigate this transformative wave of generative AI and accelerated computing, equipping them with powerful solutions becomes paramount. NVIDIA RTX solutions enable professionals to harness the full potential of AI and graphics, driving innovation and pushing the boundaries of what is possible. By providing professionals with the necessary tools and technologies, they can confidently take on this next wave of AI and graphics, unlocking new levels of creativity and productivity.

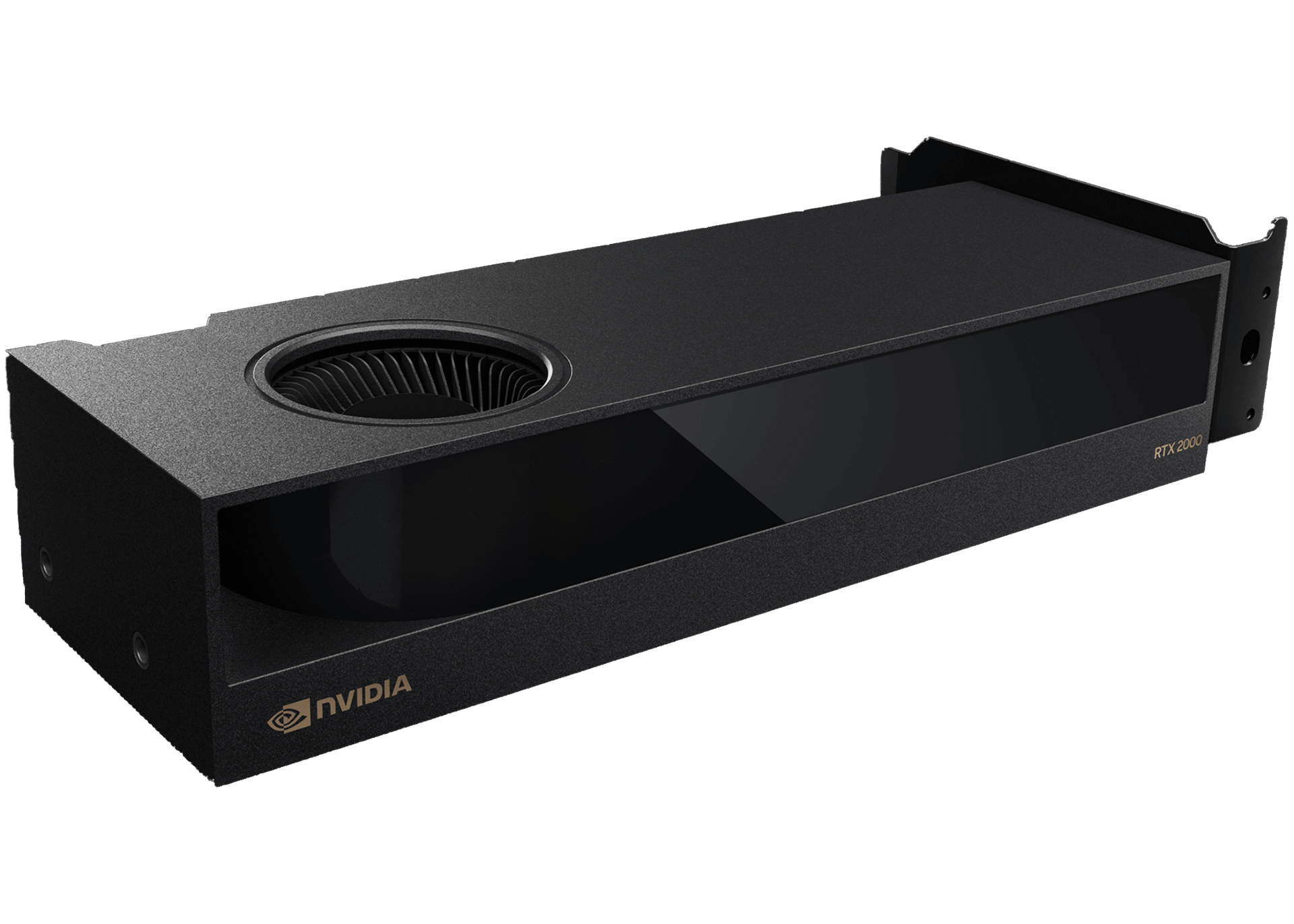

The NVIDIA RTX™ 2000 Ada Generation brings the cutting-edge Ada Lovelace architecture to more professionals, whether they use compact workstations or expansive full-sized towers, offering faster performance, advanced features, and up to 16GB of GPU memory. With its powerful low-profile, dual-slot form factor, you can do your life’s work on a wide range of systems and free from limitations.
| CUDA Cores | 2816 |
| Tensor Cores | 88 |
| RT Cores | 22 |
| Single Precision Performance1 | 12 TFLOPS |
| RT Core Performance1 | 27.7 TFLOPS |
| Tensor Performance1 | 191.9 TFLOPS2 |
| GPU Memory | 16 GB GDDR6 with ECC |
| Memory Interface | 128-bit |
| Memory Bandwidth | 224 GB/sec |
| System Interface | PCI Express 4.0 x8 |

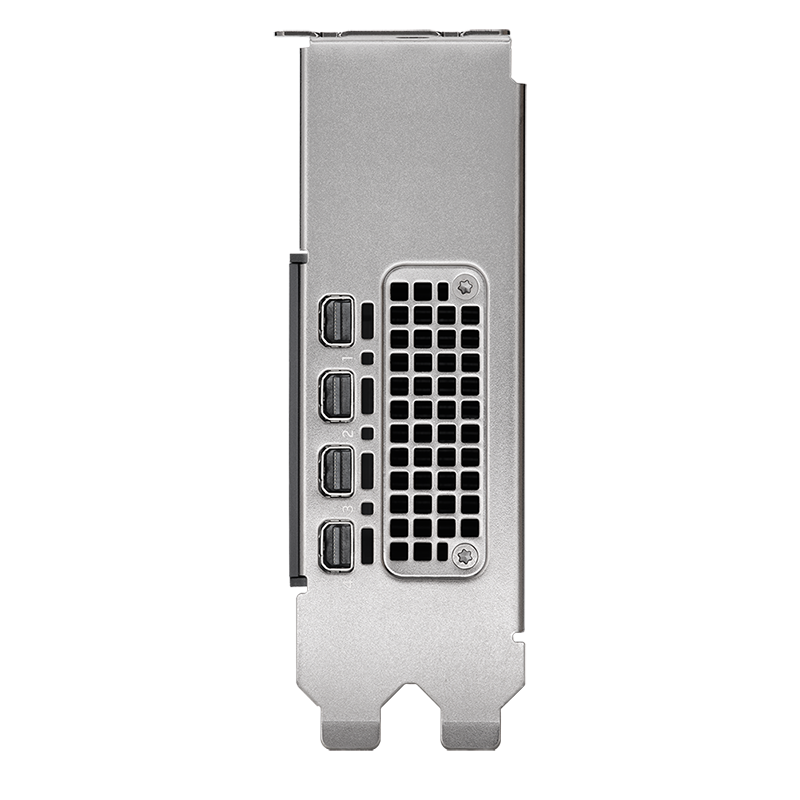

| Display Connectors | 4x Mini DisplayPort 1.4a |
| Maximum Power Consumption | 70 W |
Free dedicated phone and email technical support(1-800-230-0130)
Dedicated NVIDIA professional products Field Application Engineers
The NVIDIA RTX™ 2000 Ada Generation, based on the Ada Lovelace architecture, gives professionals the power of the latest RTX technology for accelerated ray tracing and AI to drive advanced visualization, creative, and design workflows for mainstream applications.
The NVIDIA Ada Lovelace architecture-based CUDA Cores deliver up to 1.5X the single-precision floating-point (FP32) throughput compared to the previous generation, providing significant performance improvements for graphics workflows such as 3D model development and single-precision compute for workloads like desktop simulation for CAE.
Third-generation RT cores in the RTX 2000 provide up to 1.7X faster ray tracing performance over the previous generation, significantly boosting rendering speeds for content creation, design reviews, and virtual manufacturing prototyping. Enhanced RT cores and Shader Execution Reordering (SER) technology optimize shader performance, further accelerating ray traced image rendering.
Fourth-generation Tensor Cores provide support for the new FP8 data format for inference providing up to 1.8X higher throughput for tensor matrix operations than the previous generation and reducing data memory usage by half compared to the FP16 data format for more efficient execution of workloads using a mix of computation and addressing calculations.
The RTX 2000 supports PCIe Gen 4, which doubles the bandwidth of PCIe Gen3 from 15.75GB/sec to 31.5 GB/sec for x8 connections, improving data transfer speeds from CPU memory for data-intensive tasks such as AI, data science, and creating 3D models from large datasets. RTX 2000 Ada Generation utilizes a full-length PCIe Gen 4 x8 interface.
The RTX 2000 features 16GB of GDDR6 memory, providing the memory needed for rendering, data science, engineering simulation, and other GPU memory-intensive applications. Support for ECC memory delivers uncompromised computing accuracy and reliability for mission-critical applications.
ECC on graphics memory detects and corrects data corruption in memory, meeting strict data integrity requirements for mission-critical applications with uncompromised computing accuracy and reliability for workstations.
NVDEC is well-suited for transcoding and video playback applications for real-time decoding. The following codecs are supported for hardware-accelerated decoding: MPEG-2, VC-1, H.264 (AVCHD), H.265 (HEVC), VP8, VP9, and AV1.
NVENC can take on the most demanding 4K or 8K video encoding tasks to free up the graphics engine and the CPU for other operations. The RTX 2000 provides better encoding quality than software-based x264 encoders. The RTX 2000 incorporates AV1 video encoding which is 40% more efficient than H.264 encoding for 4K HDR video. AV1 will provide better quality at the same bitrate bandwidth.
Pixel-level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.
Preemption at the instruction level provides finer grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out.
Accelerating GPU-based lossless decompression performance by up to 100x and 20x lower CPU utilization compared to traditional storage APIs using Microsoft’s new DirectStorage for Windows API. RTX IO moves data from the storage to the GPU in a more efficient, compressed form, and improves I/O performance.
Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.
Support up to four 5K monitors at 60Hz, or dual 8K displays at 60Hz per card. The RTX 2000 supports HDR color for 4K at 60Hz for 10/12b HEVC decode and up to 4K at 60Hz for 10b HEVC encode. Each DisplayPort connector can drive ultra-high resolutions of 4096 x 2160 at 120 Hz with 30-bit color.
Gain unprecedented end-user control of the desktop experience for increased productivity in single large display or multi-display environments, especially in the current age of large, widescreen displays.
Provide a smooth and immersive 3D Stereo experience for professional applications.
Get more Mosaic topology choices with high-resolution display devices with a 32K max desktop size.
NVIDIA RTX Experience delivers a suite of productivity tools to your desktop workstation, including desktop recording in up to 8K, automatic alerts for the latest NVIDIA RTX Enterprise driver updates, and access to gaming features. The application is available for download here.
Deep learning frameworks such as Caffe2, MXNet, CNTK, TensorFlow, and others deliver dramatically faster training times and higher multi-node training performance. GPU-accelerated libraries such as cuDNN, cuBLAS, and TensorRT deliver higher performance for both deep learning inference and High-Performance Computing (HPC) applications.
Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computation fluid dynamics.
A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.
Maximize system uptime, seamlessly manage wide-scale deployments, and remotely control graphics and display settings for efficient operations.
| Product | NVIDIA RTX™ 2000 Ada Generation |
| Architecture | NVIDIA Ada Generation Architecture |
| Process Size | 4N NVIDIA Custom Process |
| Transistors | 19.9 Billion |
| Die Size | 159 mm |
| CUDA Cores | 2816 |
| Tensor Cores | 88 |
| RT Cores | 22 |
| Single Precision Performance1 | 12 TFLOPS |
| RT Core Performance1 | 27.7 TFLOPS |
| Tensor Performance1 | 191.9 TFLOPS2 |
| GPU Memory | 16 GB GDDR6 with ECC |
| Memory Interface | 128-bit |
| Memory Bandwidth | 224 GB/sec |
| Display Connectors | 4x Mini DisplayPort 1.4a |
| NVENC | NVDEC | 1x | 1x (+ AV1 encode & decode) |
| System Interface | PCI Express 4.0 x8 |
| NVLink | Not Supported |
| Form Factor | 2.7” H x 6.6” L Dual Slot |
| Thermal Solution | Blower Active Fan |
| Maximum Power Consumption | 70 W |
| Max Digital Resolution | 7680 x 4320 x36 bpp at 60 Hz |
Performance numbers may be subject to change until product availability.
