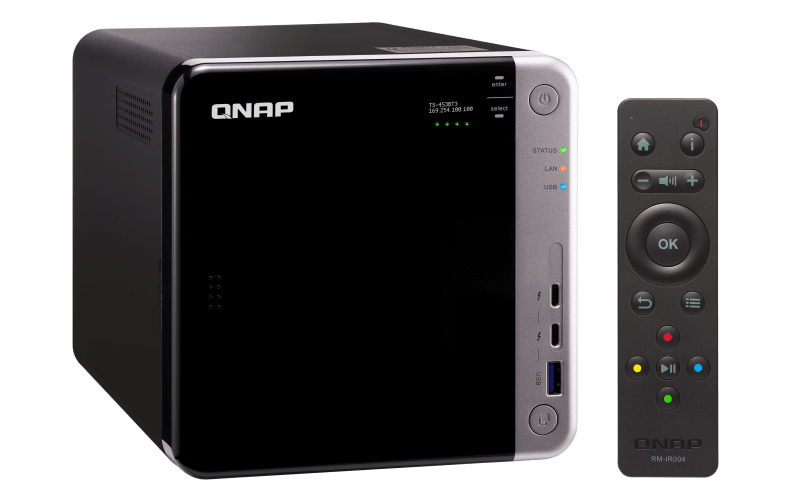

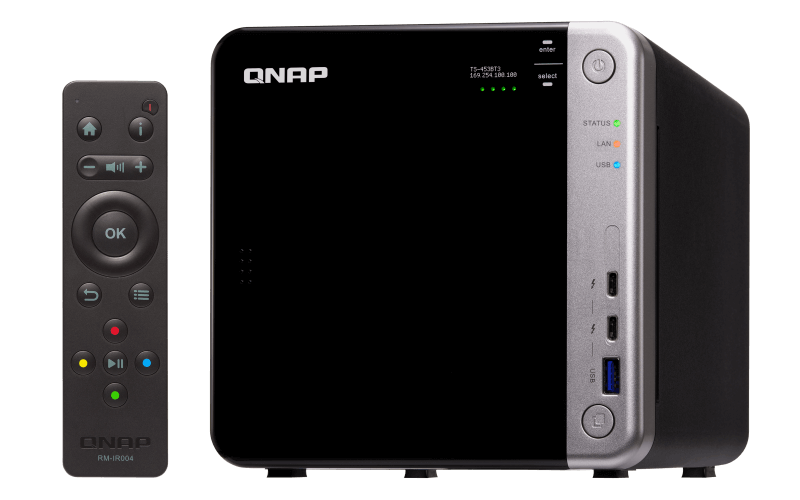

4-Bay 10GbE & Thunderbolt 3 NAS with dual M.2 2280 SATA SSD slots, Intel Celeron Apollo Lake J3455 quad-core 1.5GHz (up to 2.3GHz), 8GB DDR3L SODIMM RAM ( 2x4GB, max 8GB total), SATA 6Gb/s, 2x GbE, 1x 10GbE, 2x Thunderbolt 3, 4K hardware transcoding, 2x 4K HDMI v1.4b, OLED display + touch buttons, USB 3.0, virtualization, Surveillance Station (free 4, max 40 ch.), max 1 UX-800P/UX-500P expansion unit, speaker, 2x 3.5mmMIC In, 1x Line out
TS-453BT3-8G
CPU
Intel® Celeron® J3455 quad-core 1.5 GHz processor (burst up to 2.3 GHz)
CPU Architecture
64-bit x86
Graphic Processors
Intel® HD Graphics 500
Floating Point Unit
Encryption Engine
(AES-NI)
Hardware-accelerated Transcoding
System Memory
8 GB SO-DIMM DDR3L (2 x 4 GB)
Maximum Memory
8 GB (2 x 4 GB)
Memory Slot
2 x SO-DIMM DDR3L
For dual-DIMM configuration, you must use a pair of identical DDR3L modules.
Flash Memory
4GB (Dual boot OS protection)

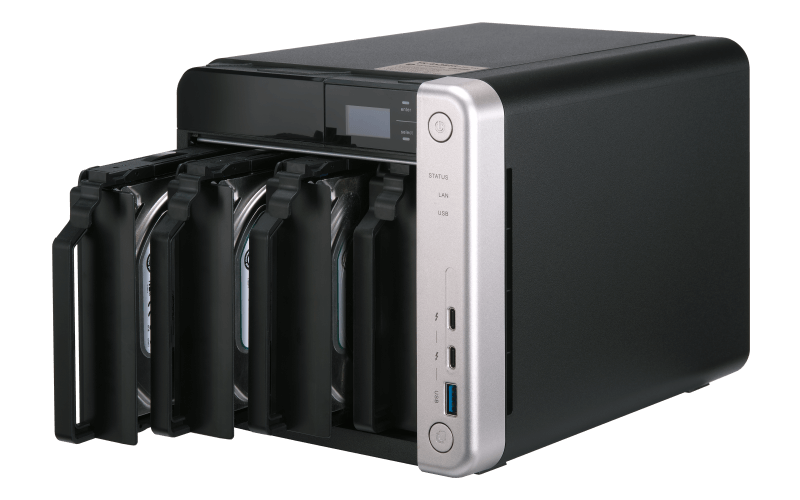

Drive Bay
4 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 SSD Slot
2 x M.2 2280 SATA 6Gb/s SSD slots (pre-installed QM2 PCIe card)
The M.2 SSD is not included as standard.
SSD Cache Acceleration Support

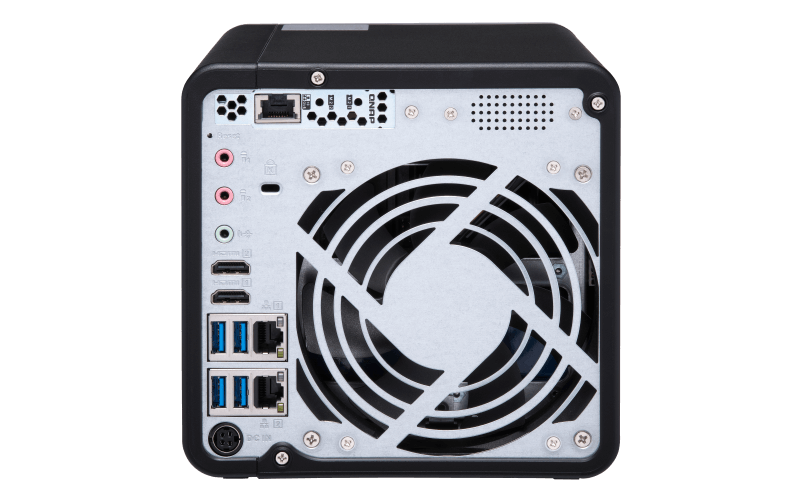

Gigabit Ethernet Port (RJ45)
2
10 Gigabit/ 5 Gigabit Ethernet Port
1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
10 Gigabit Ethernet Port_note
Pre-installed QM2 PCIe card
Jumbo Frame
Thunderbolt Port
2 (Thunderbolt™ 3)
PCIe Slot
1 x PCIe Gen 2 (x2), pre-installed with a QM2 expansion card (QM2-2S10G1TB) that includes a 10GbE 10GBASE-T port and two M.2 SATA SSD slots.
The M.2 SATA SSD slots on this QM2 card only support M.2 2280 SATA 6Gb/s SSD, please check the compatibilities before purchase.
PCIe bandwidth limitations will restrict the NAS 10GbE performance.
USB 3.0 port
5
USB 3.1 Gen 2 (10Gbps) Port
Optional via a PCIe adapter (need to replace the pre-installed QM2 card)
IR Sensor
(RM-IR004, RM-IR002, & MCE)
HDMI Output
2, HDMI 1.4b (up to 3840 x 2160 @ 30Hz)
Audio Input
2 x 3.5mm dynamic microphone input jacks
Audio Output
1 x built-in speaker, 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
You cannot use the speakers and the line-out jack simultaneously.

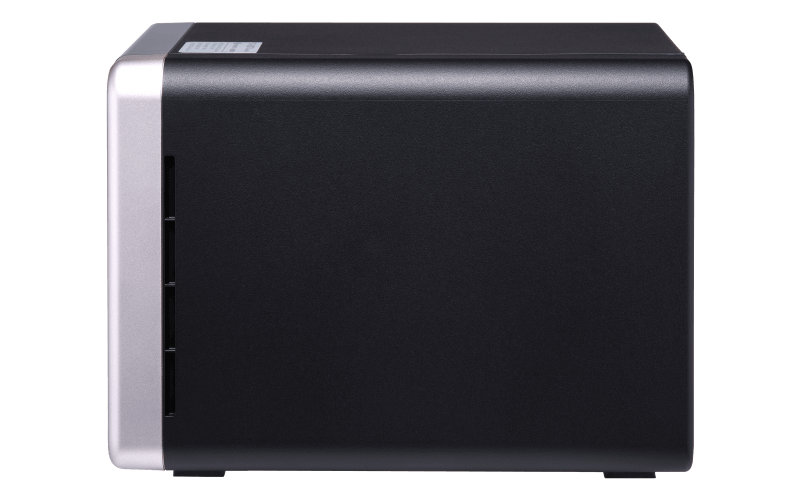

Form Factor
Tower
LED Indicators
Power/Status, LAN, USB, HDD1-4
LCD Display/ Button
Monochrome OLED display with capacitive sensing Enter and Select buttons
Buttons
Power, USB copy, Reset, Capacitive touch buttons (select, enter)
