4-Bay NAS, Intel Celeron Apollo Lake J3455 quad-core 1.5GHz (up to 2.3GHz), 2GB DDR3L SODIMM RAM ( 1x2GB, max 8GB total), SATA 6Gb/s, 2xGbE, PCIe slot for 10GbE or 2 more GbE, AES-NI encryption, 4K hardware transcoding, dual 4K HDMI v1.4b, USB 3.0, virtualization, Surveillance Station (free 4, max 40 ch.), max 1 UX-800P/UX-500P expansion unit, speaker, 2x 3.5mmMIC In, 1x Line out
CPU | Intel® Celeron® J3455 quad-core 1.5 GHz processor (burst up to 2.3 GHz) |
CPU Architecture | 64-bit x86 |
Graphic Processors | Intel® HD Graphics 500 |
Floating Point Unit | |
Encryption Engine | (AES-NI) |
Hardware-accelerated Transcoding | |
System Memory | 2 GB SO-DIMM DDR3L (1 x 2 GB) |
Maximum Memory | 8 GB (2 x 4 GB) |
Memory Slot | 2 x SO-DIMM DDR3L
For dual-DIMM configuration, you must use a pair of identical DDR3L modules. |
Flash Memory | 4GB (Dual boot OS protection) |

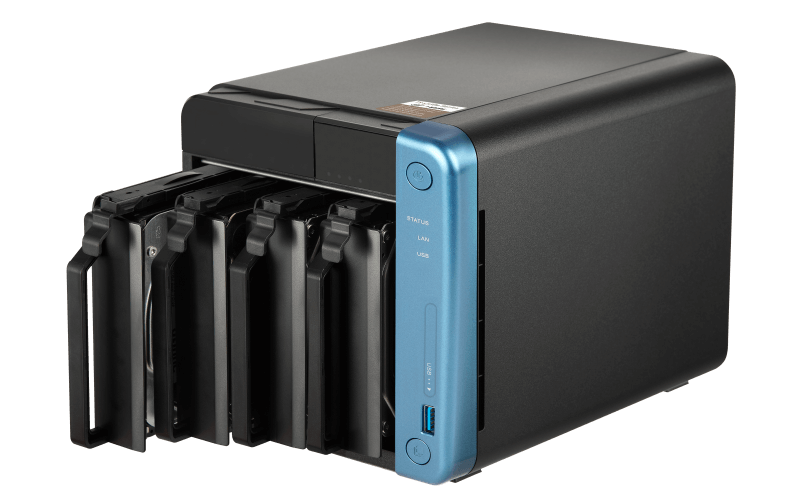

Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD. |
Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | |
M.2 SSD Slot | Optional via a PCIe adapter |
SSD Cache Acceleration Support | |
Gigabit Ethernet Port (RJ45) | 2
Expandable with an optional PCIe adapter |
10 Gigabit/ 5 Gigabit Ethernet Port | Optional via a PCIe adapter |
Jumbo Frame | |
PCIe Slot | 1 Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance. |
USB 3.0 port | 5 |
USB 3.1 Gen 2 (10Gbps) Port | Optional via a PCIe adapter |
IR Sensor | (RM-IR004, RM-IR002, & MCE) |
HDMI Output | 2, HDMI 1.4b (up to 3840 x 2160 @ 30Hz) |
Audio Input | 2 x 3.5mm dynamic microphone input jacks |
Audio Output | 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
You cannot use the speakers and the line-out jack simultaneously. |
Form Factor | Tower |
LED Indicators | Power/Status, LAN, USB, HDD1-4 |
Buttons | Power, USB copy, Reset |
Dimensions (HxWxD) | 168 × 170 × 226 mm |
Weight (Net) | 2.37 kg |
Weight (Gross) | 3.71 kg |
Operating temperature | 0 - 40 °C (32°F - 104°F) |
Relative Humidity | 5~95% RH non-condensing, wet bulb: 27°C (80.6°F) |
Power Supply Unit | External Power Adapter, 90W, 100-240V |
Power Consumption: HDD Sleep Mode | 15 W |
Power Consumption: Operating Mode, Typical | 30.04 W |
Fan | 1 x 12 cm |
Sound Level | 18.8 db(A) |
Kensington Security Slot |
