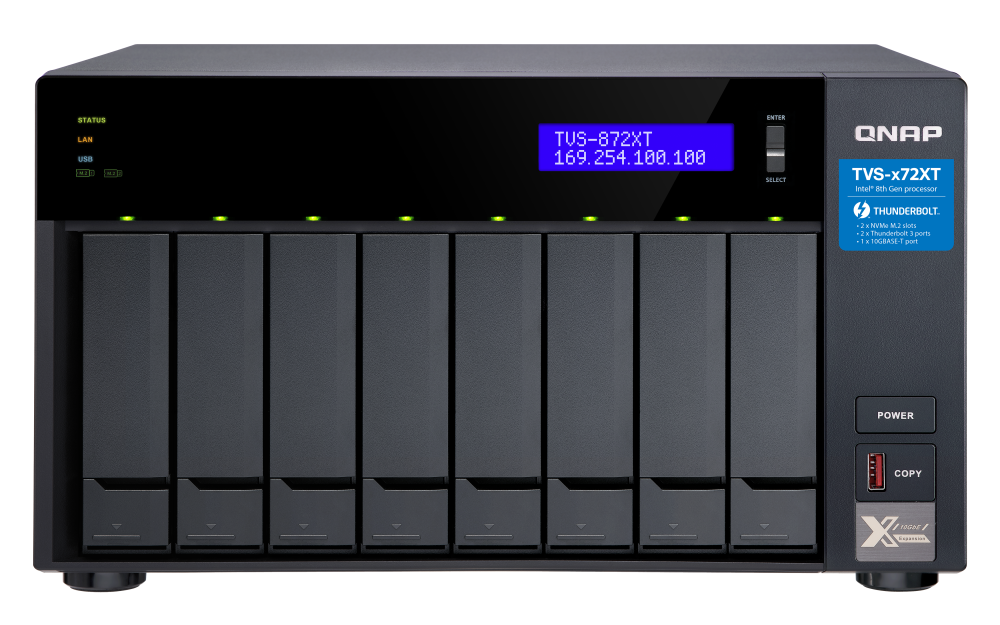

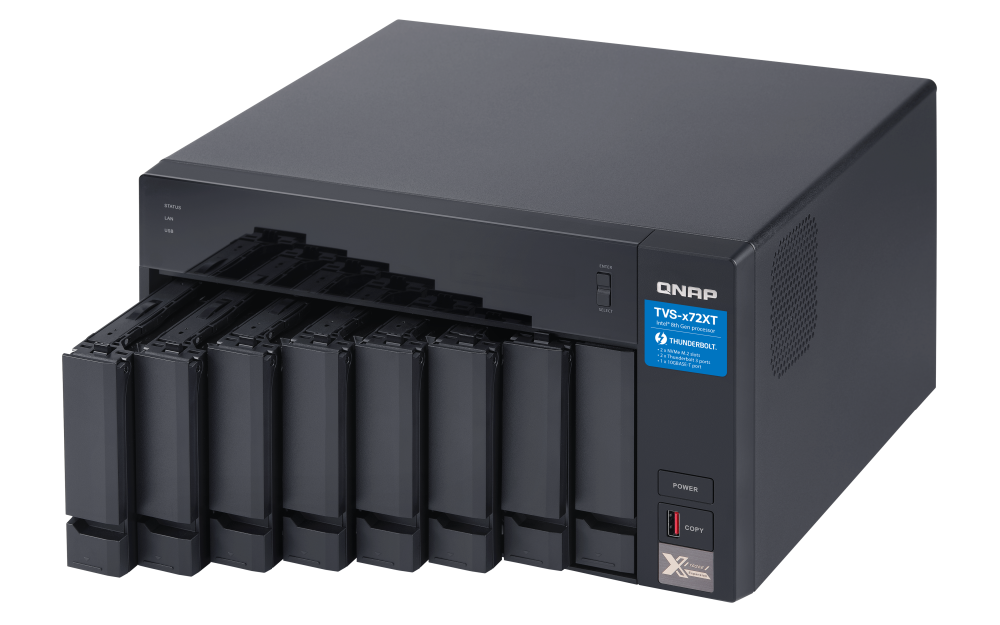

TVS-872XT-i5-16G

Protect your data with higher security , Access your NAS from anywhere , Protect your data from ransomware threats with Snapshots ,
An easy-to-use, all-in-one backup solution :
1. Back up Windows®/Mac® / Linux files.
2. Back up photos on mobile devices.
3. Back up NAS files to the cloud

8-Bay NAS, Intel core i5-8400T 6-core 1.7 GHz Processor(max 3.3GHz), 16GB DDR4 RAM (max 32GB RAM), 8x 2.5"/3.5" SATA HDD/SSD + 2x M.2 PCIe SSD slot, 2xGbE LAN, 1 x 10GBase-T, 2 x Thunderbolt 3 port, 4x USB 3.1 Gen 2 type-C & type-A, USB. 3.0, LCD, 2x PCIe expansion slot, 250W single power supply, 1x MIC In, 1x Line Out

Configure Your QNAP

HDD Brand* Please select NONE for diskless units

Qty.

SSD Options Add SSD drives to your NAS

Qty.

RAM Options Add RAM to your NAS

Qty.

₹ 214,960

Operating System	QTS 5.1.3
Supported Client Operating Systems	Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10 and 11 Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
Supported Browsers	Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version)
Supported Languages	Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool
SED Storage Pool
Maximum Pool size	308 TB
Maximum number of storage pool	128
Volume Type	Thick, Thin, Static
Maximum volume size	250 TB Note: At least 4 GB RAM is required.
Maximum number of volume	128
Maximum shared folder size	250 TB
Maximum number of shared folder	512
JBOD Expansion
VJBOD / VJBOD Cloud
iSCSI Service
Fibre Channel Service
LUN Type	Thick, Thin
File-based iSCSI LUN
Block-based iSCSI LUN
Maximum LUN size	250 TB Note: At least 4 GB RAM is required.
Maximum number of targets LUN	128
LUN feature	LUN Mapping (LUN can be moved between iSCSI and FC) LUN Masking WWPN Aliases Import/Export FC Port Group FC Port Binding Multipath IO (MPIO) Online LUN capacity expansion LUN snapshot LUN snapshot replication and clone
Auto Tiering	Requires minimum 2GB memory.
RAID Type	8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1
RAID Group	To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
RAID Level Migration
RAID Expansion (by adding Disk)
RAID Expansion (by replacing bigger Disks)
Storage Pool Expansion (by adding RAID Group)
RAID Hot Spare	Global, Local
RAID Sync/Rebuild/Scrubbing
Internal drive	EXT4
External drive	EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model) Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.
Disk, Enclosure Locate
Disk S.M.A.R.T. Scan
Disk S.M.A.R.T. Data Migration
Ironwolf Health Management
Secure Erase
SSD Trim
SSD Life Estimation
Disk Roaming
Disk Standby
Volume Snapshot
LUN Snapshot
Maximum Snapshot (Per System)	Check maximum number of snapshots of your NAS
Maximum Snapshot (Per Volume / LUN)	Check maximum number of snapshots of your NAS
Minimum Snapshot Interval	5 minutes
Snapshot Retention Policy
Self-serve Snapshot Recovery
Application Consisted Snapshot
Snapshot Full Clone
Snapshot Replica / Vault
SSD read-only Cache
SSD read-write cache
SSD write-only cache
SSD Cache Maximum Size	Check your QNAP NAS cache capacity and RAM requirements
SSD Cache RAID	0, 1, 5, 6, 10
SSD profiling tool
External Device Management
Mount Smart Phone (MTP)
External RAID Device (QNAP so on) Management (External Device Mode)
External RAID Device (QNAP so on) Management (NAS Mode)
File Server	File sharing across Windows, Mac, and Linux/UNIX Microsoft networking (CIFS/SMB) Apple networking (AFP) NFS version 3/4 services
FTP Server	QuFTP FTP, SFTP and TFTP protocols FTP over SSL/TLS (explicit FTPS) FXP support
Maximum FTP connection	1024
File Station (Web)
Object Storage
Local user account	4,096
Local group account	512
Domain user/group account	200,000
Domain Security
Domain Controller
Shared folder permission
Advanced folder permission	, (AFP, CIFS/SMB, FTP, and File Station)
Windows ACL	, (CIFS/SMB)
User quota
Group quota
Folder quota	, (Snapshot shared folder)
Home folder
Resource Monitor
SNMP	V2, V3
Network recycle bin	Recover files deleted using AFP, CIFS/SMB, and File Station Automatic cleanup and file type filter
System Log & Notification Center	Log recording: 3,000 event per second
Smart Fan
Schedule on/off
Internet protocol	IPv4, IPv6
Virtual Switch
Port trunking	, (7 modes)
VLAN
DHCP Server
DDNS (Dynamic Domain Name Service)
Network access protection with auto-blocking	SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
Security Counselor
Malware Remover
AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP
2-step verification
Allow/Deny List
Access Protection
Service binding
Firewall
vSphere Web Client Plug-in
VMware vSphere VAAI for iSCSI
VMware vSphere VAAI for NAS
Windows ODX
Windows/VMware Snapshot Agent
HTTP/HTTPS Connections	TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection
Supports Virtual Hosts	32
Qsync	Note: At least 1 GB RAM is required.
[Qsync] Management Mode	User customization, Central
[Qsync] Qsync client supported platforms	Windows, macOS, Ubuntu, Android, and iOS
[Qsync] Maximum number of version control	64
HybridMount	Note: At least 1 GB RAM is required.
[HybridMount] File Cloud Gateway	Concurrent Connections = 20 Upload & 20 Download
[HybridMount] Network Drive Mount
[HybridMount] Free cloud gateway sessions	2
HBS (Hybrid Backup Sync)	Note: At least 1 GB RAM is required.
[HBS (Hybrid Backup Sync)] NAS to NAS backup
[HBS (Hybrid Backup Sync)] Cloud Backup
[HBS (Hybrid Backup Sync)] Cloud Sync
[HBS (Hybrid Backup Sync)] 2-way and Active Sync
[HBS (Hybrid Backup Sync)] Backup Deduplication
[HBS (Hybrid Backup Sync)] Apple Time Machine Backup
[HBS (Hybrid Backup Sync)] External drive backup
[HBS (Hybrid Backup Sync)] Maximum number of backup job	400
Hyper Data Protector
Boxafe	Note: At least 4 GB RAM is required.
[Boxafe] Office 365 Backup
[Boxafe] Google Workspace Backup
[Boxafe] Full-text search
Qsirch	Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
[Qsirch] Previews	Photos, music, videos, PDFs, Gmail, and others
[Qsirch] Integrate Mac Finder
[Qsirch] Advanced picture search
[Qsirch] Search filters
QuMagie	Note: At least 1 GB RAM is required.
[QuMagie] Browse photos
[QuMagie] Virtual and smart albums
[QuMagie] AI-assisted photo management	People, things, places, and others
Antivirus (free)
McAfee (License)
QVPN Service	Note: At least 1 GB RAM is required.
[QVPN Service] Remote Access	PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)
[QVPN Service] Supportedd utility and mobile app	Windows, macOS, iOS, and Android
[QVPN Service] Supported maximum clients	100
HD Station
LDAP Server
RADIUS
SQL server
License Center
Multimedia Console
Photo Station
Music Station
Video Station
Download Station
Notes Station
Qfiling
Media Streaming add-on
QmailAgent
QuWAN
DA Driver Analyzer
Q'center	Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
Q'center Server
Q'center Agent
Connect to Q'center
Virtualization Station	Note: At least 4 GB RAM is required.
[Virtualization Station] Supports Virtual machine instances	Windows, Linux, Unix, and Android
[Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration	All function is Fine.
[Virtualization Station] Virtual switches	Can create a virtual switch
[Virtualization Station] GPU pass-through	Not support GPU
Container Station	Note: At least 1 GB RAM is required.
[Container Station] Supported type	LXC/LXD and Docker Note: LXD has been supported after Container Station 2.4
[Container Station] Docker Hub Registry
[Container Station] Container importing and exporting
[Container Station] Console mode
Linux Station	Notification: At least 4 GB RAM is required.
[Linux Station] Supports Ubuntu versions	18.04, and 20.04
Linux Station Center
QVR Pro	Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Pro] Recording Technique	Index database based
[QVR Pro] License Type	Perpetual
[QVR Pro] User-defined trigger events
[QVR Pro] Metadata
[QVR Pro] QVR Pro Client (Desktop)	Windows, macOS, and QNAP HybridDesk Station
[QVR Pro] QVR Pro Client (Mobile)	Android and iOS
[QVR Pro] Recording camera streams	H.264
[QVR Pro] Free built-in camera channels	8
QVR Elite	Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Elite] Recording Technique	Standard MP4 file based
[QVR Elite] License Type	Subscription-based
[QVR Elite] User-defined trigger events
[QVR Elite] QVR Pro Client (Desktop)	Windows, macOS, and QNAP HybridDesk Station
[QVR Elite] QVR Pro Client (Mobile)	Android and iOS
[QVR Elite] Recording camera streams	H.264
[QVR Elite] Free built-in camera channels	2
QVR Pro Client
[QVR Pro Client] Dynamic View Layout
[QVR Pro Client] Windows
[QVR Pro Client] Mac
[QVR Pro Client] HybridDesktop
[QVR Pro Client] iOS
[QVR Pro Client] Android
QVR Center	Note: At least 4 GB RAM is required.
[QVR Center] Log management
[QVR Center] Central monitoring across multiple servers
QVR Guard	Note: At least 4 GB RAM is required.
[QVR Guard] Failover design
[QVR Guard] Viewing task details
[QVR Guard] Automatic switch between Standby and Takeover modes
QVR Human
QVR Face	The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/
QVR DoorAccess

Operating System	QuTS hero h5.1.3
Supported Client Operating Systems	Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10, and 11 Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, and 2022
Supported Browsers	Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version)
Supported Languages	Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool
SED Storage Pool
Maximum Pool size	5 PB
Maximum number of storage pool	128
Shared Folder Type	Thick, Thin
Maximum shared folder size	5 PB
Maximum number of shared folder	128
JBOD Expansion
VJBOD / VJBOD Cloud
iSCSI Service
Fibre Channel Service
LUN Type	Thick, Thin
Block-based iSCSI LUN
Maximum LUN size	1024 TB
Maximum number of targets LUN	128
RAID Type	8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity 6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity 4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity 3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity 2-bay: Single, RAID 0 (Stripe), 1
RAID Group	To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
RAID Expansion (by replacing bigger Disks)
Storage Pool Expansion (by adding RAID Group)
RAID Hot Spare	Global, Local
RAID Sync/Rebuild/Scrubbing
End-to-End data integrity
Silent error detection and self-healing
Internal drive	ZFS
External drive	EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
Disk, Enclosure Locate
Disk S.M.A.R.T. Scan
Disk S.M.A.R.T. Data Migration
Ironwolf Health Management
Secure Erase
SSD Trim
SSD Life Estimation
Disk Roaming
Disk Standby
Shared Folder Snapshot
LUN Snapshot
Maximum Snapshot (Per System)	Check maximum number of snapshots of your NAS
Maximum Snapshot (Per Volume / LUN)	Check maximum number of snapshots of your NAS
Minimum Snapshot Interval	1 minute
Snapshot Retention Policy
Self-serve Snapshot Recovery
Application Consisted Snapshot
Snapshot Full Clone
Snapshot Instant Clone
Snapshot Replica / Vault
SSD read-only Cache
SSD read & write log cache
SSD dedicated ZIL cache
SSD Cache Maximum Size	Check your QNAP NAS cache capacity and RAM requirements
SSD Cache RAID	0, 1, 10 (journal)
External Device Management
Mount Smart Phone (MTP)
External RAID Device (QNAP so on) Management (External Device Mode)
External RAID Device (QNAP so on) Management (NAS Mode)
File Server	File sharing across Windows, Mac, and Linux/UNIX Microsoft networking (CIFS/SMB) Apple networking (AFP) NFS version 3/4 services
FTP Server	FTP, SFTP and TFTP protocols FTP over SSL/TLS (explicit FTPS) FXP support
Maximum FTP connection	1024
Shared Folder Data Compression
Shared Folder Data Deduplication
Shared Folder WORM
File Station (Web)
Object Storage
Local user account	16,000
Local group account	512
Domain user/group account	200,000
Domain Security
Domain Controller
Shared folder permission
Windows ACL
User quota
Group quota
Folder quota
Home folder
Resource Monitor
SNMP	V2, V3
Network recycle bin	Recover files deleted using AFP, CIFS/SMB, and File Station Automatic cleanup and file type filter
System Log & Notification Center	Log recording: 3,000 event per second
Smart Fan
Schedule on/off
Internet protocol	IPv4, IPv6
Virtual Switch
Port trunking	, (7 modes)
VLAN
DHCP Server
DDNS (Dynamic Domain Name Service)
Network access protection with auto-blocking	SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
Security Counselor
Malware Remover
AES 256-bit Folder Encryption validated by FIPS 140-2 CAVP
2-step verification
Allow/Deny List
Access Protection
Service binding
Firewall
vSphere Web Client Plug-in
VMware vSphere VAAI for iSCSI
VMware vSphere VAAI for NAS
Windows ODX
Windows/VMware Snapshot Agent
HTTP/HTTPS Connections	TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection
Supports Virtual Hosts	32
Qsync	Note: At least 1 GB RAM is required.
[Qsync] Management Mode	User customization, Central
[Qsync] Qsync client supported platforms	Windows, macOS, Ubuntu, Android, and iOS
[Qsync] Maximum number of version control	64
HybridMount	Note: At least 1 GB RAM is required.
[HybridMount] File Cloud Gateway	Concurrent Connections = 80 Upload & 80 Download
[HybridMount] Network Drive Mount
[HybridMount] Free cloud gateway sessions	2
HBS (Hybrid Backup Sync)	Note: At least 1 GB RAM is required.
[HBS (Hybrid Backup Sync)] NAS to NAS backup
[HBS (Hybrid Backup Sync)] Cloud Backup
[HBS (Hybrid Backup Sync)] Cloud Sync
[HBS (Hybrid Backup Sync)] 2-way and Active Sync
[HBS (Hybrid Backup Sync)] Backup Deduplication
[HBS (Hybrid Backup Sync)] Apple Time Machine Backup

AI & Deep Learning

Architecture & Engineering

Visual Designing & Audio Effects

Trading PC

Nas

Gaming PC Series

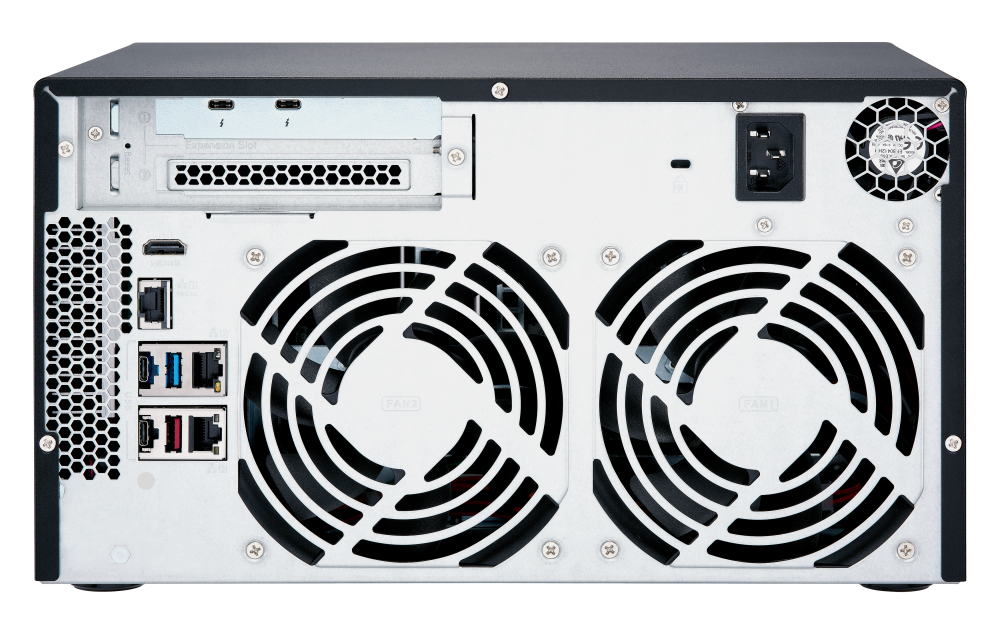

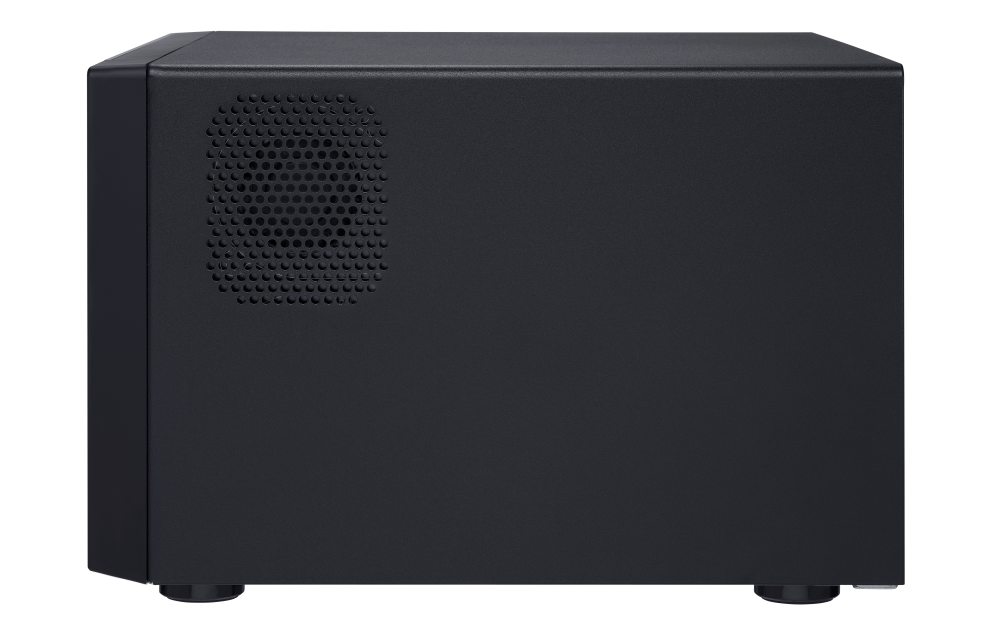

TVS-872XT-i5-16G

Configure Your QNAP

TVS-872XT-i5-16G
