12 (+6)-Bay TurboNAS, SAS 12G, SAS/SATA 6G, Xeon D-1521 2.4GHz, 8GB ECC RAM, 4-LAN, built0in 2 10Gb SFP+, 40Gb network-ready, iSCSI, RAID 0,1, 5, 6, 10, 5+spare, 6+spare, 10+spare, global hot spare, max 128 GB RAM, max 12-LAN, PCIe expansion slot x4, redundant power supply

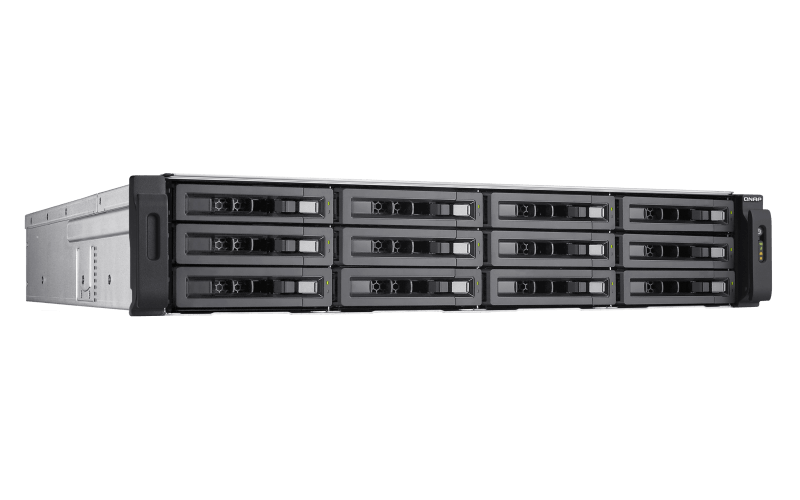

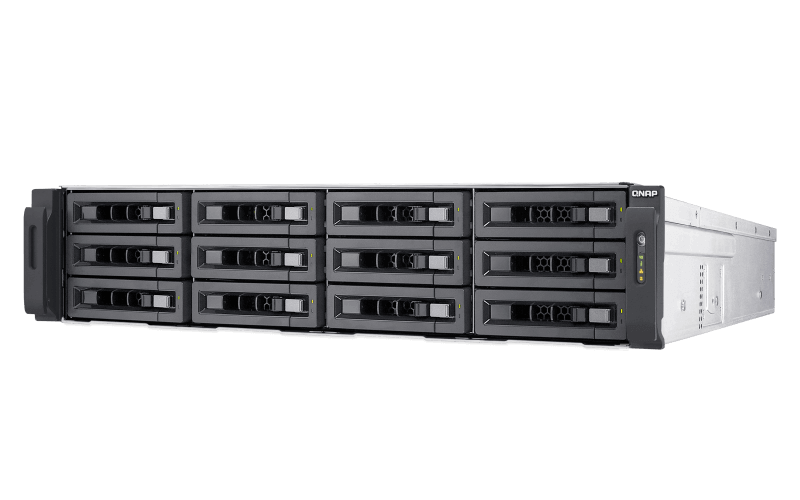

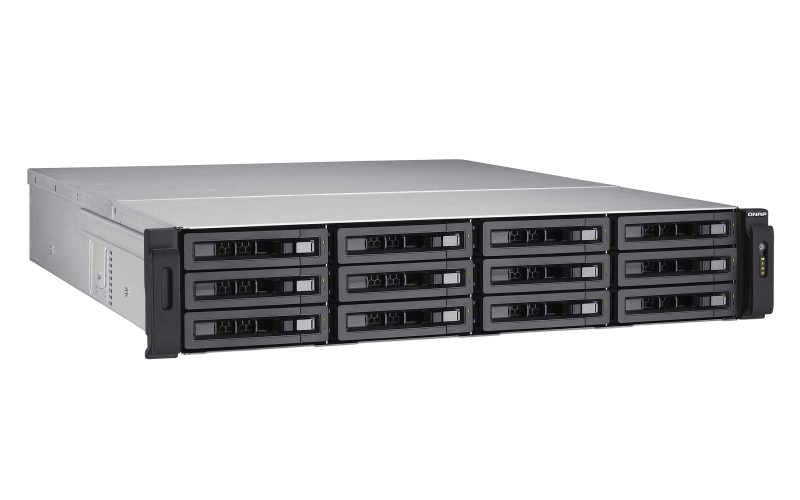

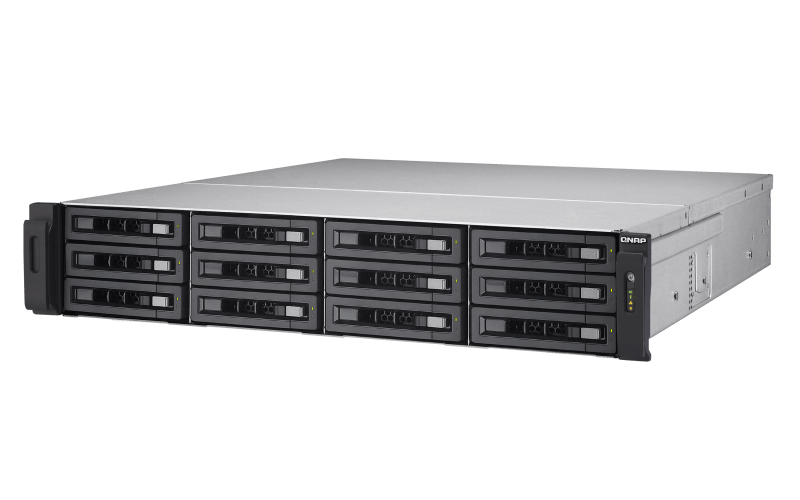

TES-1885U-D1521-8GR
CPU
Intel® Xeon® D-1521 quad-core 2.4 GHz processor, Max turbo to 2.7 GHz.
CPU Architecture
64-bit x86
Floating Point Unit
Encryption Engine
(AES-NI)
System Memory
8 GB RDIMM DDR4 ECC (1 x 8GB)
Maximum Memory
UDIMM: 64 GB (4 x 16 GB)
RDIMM: 128GB (4 x 32 GB)
Memory Slot
4 x Long-DIMM DDR4
32 GB (above) RAM is required for QES operating system.
You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with unbuffer DIMM (UDIMM) memory.
Flash Memory
4GB (DOM for dual OS)
Drive Bay

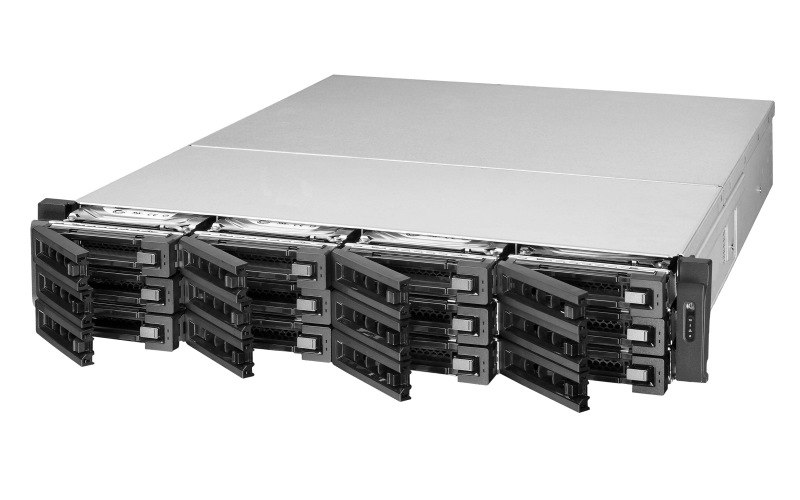

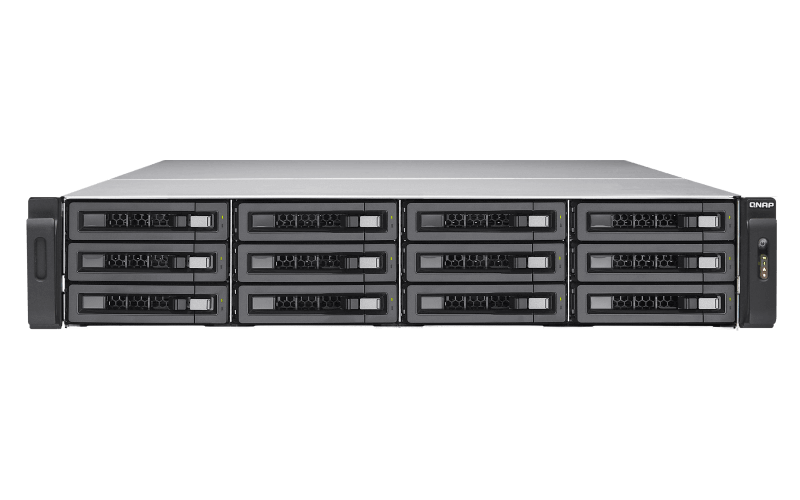

Front: 12 x 3.5-inch

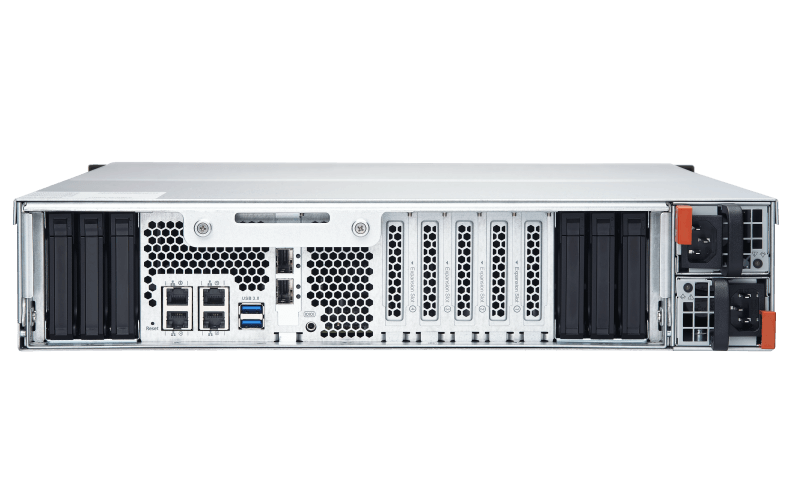

Rear: 6 x 2.5-inch
Drive Compatibility
3.5-inch bays:
3.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA solid state drives
2.5-inch bays:
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45)
4
10 Gigabit/ 5 Gigabit Ethernet Port
2 x 10GbE SFP+
Jumbo Frame
PCIe Slot
4
Slot 1: PCIe Gen 3 x8
Slot 2: PCIe Gen 2 x4
Slot 3: PCIe Gen 3 x4
Slot 4: PCIe Gen 3 x4 or PCIe Gen 3 x8
Slot 4 provides the width of PCIe Gen.3 x8 when slot 3 is not in use. Slot 4 then provides the width of PCIe Gen.3 x4 only when an expansion board is installed in slot 3.
USB 3.0 port
2
Form Factor
2U Rackmount
LED Indicators
HDD, Status, 10 GbE, LAN, storage expansion port status
Buttons
Power, Reset
Dimensions (HxWxD)
88 × 442.5 × 530.5 mm
Weight (Net)
15.34 kg
Weight (Gross)
21.25 kg
Operating temperature
0 - 40 ºC (32ºF - 104ºF)
Relative Humidity
5~95% RH non-condensing, wet bulb: 27ºC (80.6ºF)
Power Supply Unit
Redundant/ Hot Swap ATX Power Supply,Input:
47-63 Hz
100-127V~/ 8A
200-240V/ 4A
Output: 450W
