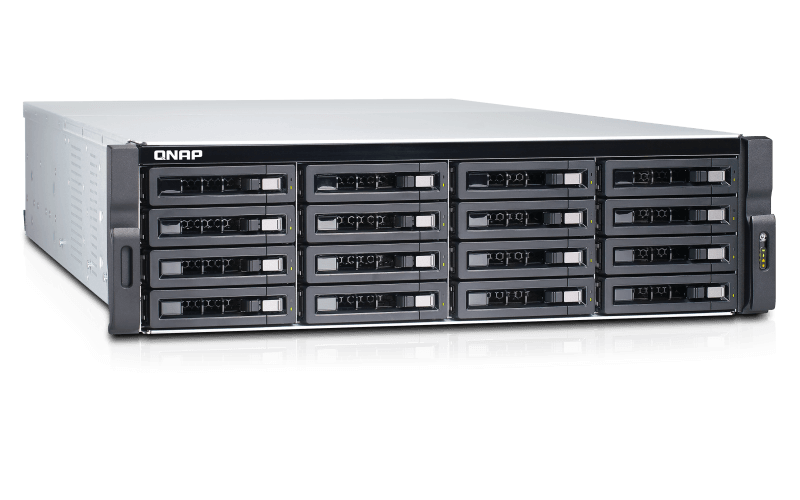

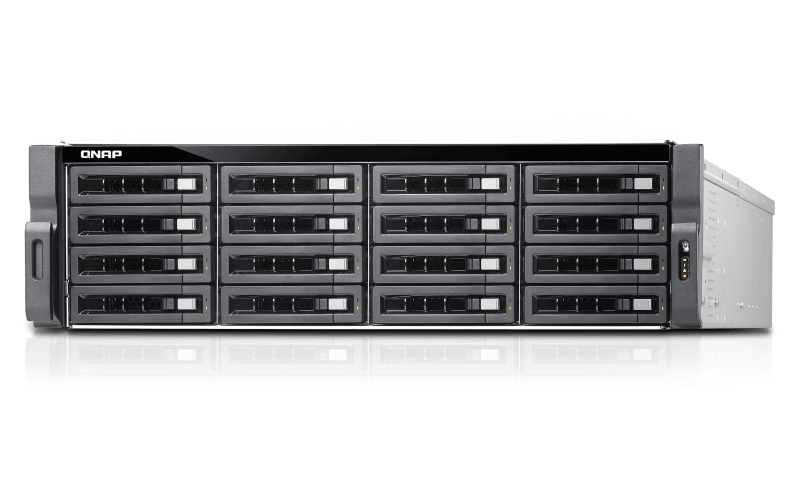

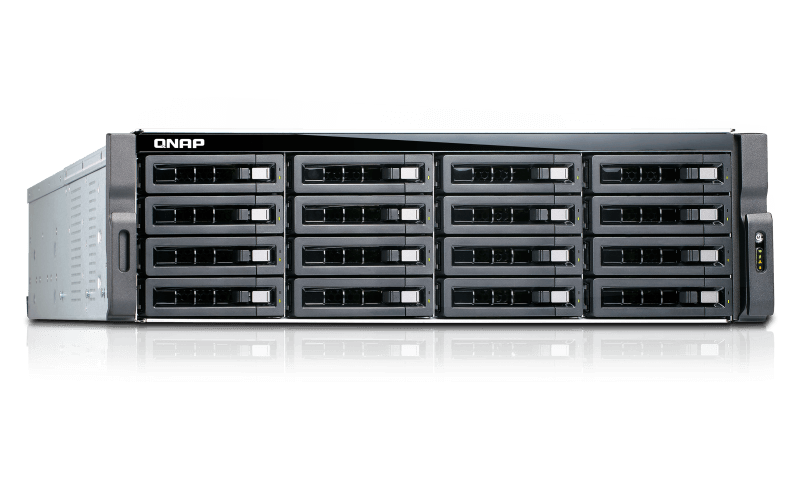

TDS-16489U-SE1-R2
CPU
E5-2620 v3 6-core 2.4 GHz processor x2
*Available with customization requirement
CPU Architecture
64-bit x86
Floating Point Unit
Encryption Engine
(AES-NI)
System Memory
64GB RDIMM DDR4 (8 x 8GB)
Maximum Memory
RDIMM/LRDIMM: 1 TB (16 x 64 GB)
Memory Slot
16 x Long-DIMM DDR4
You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
For the memory installation guidelines, see chapter 5 of the TDS-16489U User Guide.
Flash Memory
512MB (DOM for dual OS)

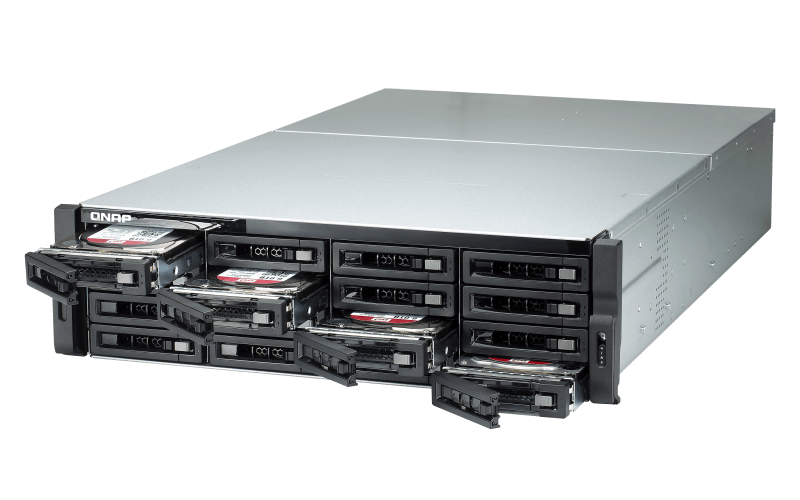

Drive Bay
Front: 16 x 3.5-inch

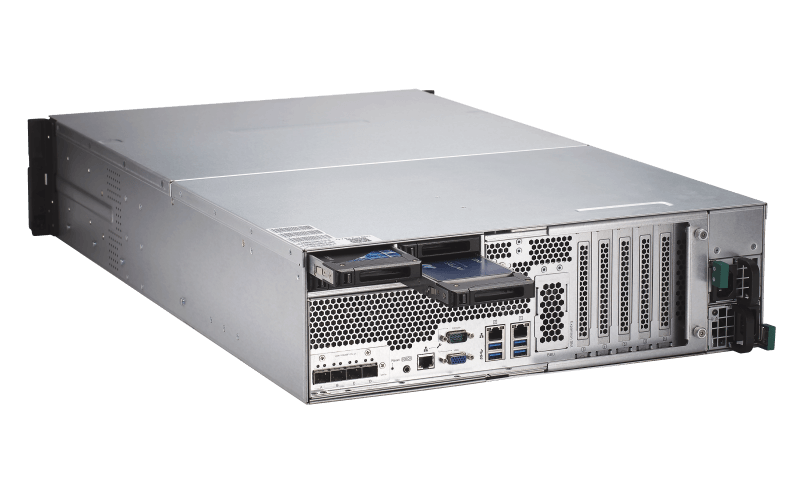

Rear: 4 x 2.5-inch
Drive Compatibility
3.5-inch bays:
3.5-inch SATA/SAS hard disk drives
2.5-inch SATA/SAS hard disk drives
2.5-inch SATA/SAS solid state drives
2.5-inch bays:
2.5-inch SATA/SAS solid state drives
Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45)
2
For a list of compatible network adapters, please visit the Compatibility List.
For instructions on how to install network adapters, please refer to Chapter 6 of the QNAP NAS Hardware Manual.
10 Gigabit/ 5 Gigabit Ethernet Port
4 x 10GbE SFP+
Jumbo Frame
PCIe Slot
4
Slot 1: PCIe Gen 3 x16
Slot 2: PCIe Gen 3 x8
Slot 3: PCIe Gen 3 x8
Slot 4: PCIe Gen 3 x8
USB 3.0 port
4
IPMI
1
Form Factor
3U Rackmount
LED Indicators
HDD 1-16, Status, 10 GbE, LAN, storage expansion port status
Buttons
Power, Reset
Dimensions (HxWxD)
130.8 × 444 × 744 mm
Weight (Net)
22.42 kg
Weight (Gross)
30.19 kg
Operating temperature
0 - 40 °C (32°F - 104°F)
Relative Humidity
5~95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit
Redundant/ Hot Swap ATX Power Supply,Input:
50-60 Hz
100-127V~/ 10A
200-240V/ 5A
Output: 770W
